In a Compton scattering experiment, a photon is scattered...

In a Compton scattering experiment, a photon is scattered through an angle of $90.0^{\circ}$ and the electron is set into motion in a direction at an angle of $20.0^{\circ}$ to the original direction of the photon. (a) Explain how this information is sufficient to determine uniquely the wavelength of the scattered photon and (b) find this wavelength.

Key Concepts

Compton Scattering

Compton scattering is an important quantum phenomenon where a photon collides with an electron, resulting in a change in the photon's wavelength due to energy and momentum transfer. This process is described by the Compton equation, which relates the increase in the photon’s wavelength to the angle by which it scatters.

Conservation of Energy and Momentum

The conservation of energy and momentum are fundamental principles in physics that state that the total energy and total momentum of an isolated system remain constant. In the context of Compton scattering, these conservation laws are applied along both the original and scattering directions, allowing us to set up equations that uniquely determine the scattered photon’s wavelength based on the scattering angles.

Scattering Geometry

Scattering geometry refers to the spatial configuration of the incident and scattered particles, characterized by the angles at which they move relative to each other. Knowing the scattering angles of both the photon and electron is crucial as it provides the directional components necessary for applying conservation laws, thereby ensuring that the equations governing the system have a unique solution.

Relativistic Kinematics

Compton scattering is analyzed using relativistic kinematics because the energies involved can be comparable to the rest mass energy of the electron. This framework uses the relationships between energy, momentum, and wavelength (especially for massless particles like photons) to accurately describe the dynamics of the scattering process and determine quantities such as the change in the photon’s wavelength.

Transcript

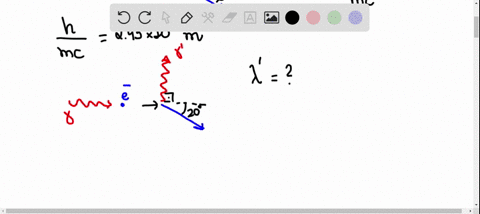

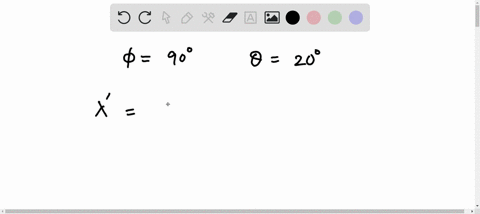

00:01 Okay, we have a constant scattering experiment where the outgoing photon is 90 degrees from the incoming one.

00:07 We know the electron's going off at 20 degrees.

00:10 So first of all, we wanna know if we can actually solve this because we're not given the initial or the final wavelength or the velocity of the electron, just the angles.

00:25 So can we solve this? so let's write down the equations.

00:30 I don't actually intend to solve these, but let's write them all down.

00:36 So the energy conservation and then momentum conservation in the x direction and in the y direction.

00:46 We know gamma from our relativity information.

00:54 We know v squared is vx squared plus vy squared.

01:01 We have relationship between wavelength and frequency for both photons.

01:11 And we know vy over vx is the tangent of 20 degrees.

01:18 So if we count these up, we have eight unknowns and we also have eight equations.

01:29 So yes, there's eight equations and eight unknowns and they're not linear, but that's okay.

01:37 We can solve them in principle.

01:40 And then in part b, we wanna find the outgoing wavelength.

01:58 That's all we really care about.

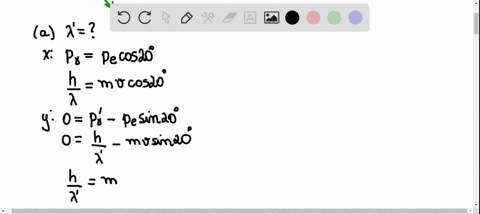

01:59 So our momentum equations give us vx and vy in terms of the wavelengths...
