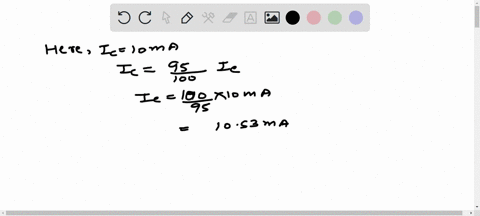

step 1 So here collector current equals 10 millie ampere and collector current equal 95 by 100 emitter

In a n ·p-n transistor circuit, the collector current is 10...

In a $n \cdot p-n$ transistor circuit, the collector current is $10 \mathrm{~mA}$. If 95 per cent of the electrons emitted reach the collector, which of the following statements are true? (a) The emitter current will be $8 \mathrm{~mA}$ (b) The emitter current will be $10.53 \mathrm{~mA}$ (c) The base current will be $0.53 \mathrm{~mA}$ (d) The base current will be $2 \mathrm{~mA}$

In a $n \cdot p-n$ transistor circuit, the collector current is $10 \mathrm{~mA}$. If 95 per cent of the electrons emitted reach the collector, which of the following statements are true?
(a) The emitter current will be $8 \mathrm{~mA}$
(b) The emitter current will be $10.53 \mathrm{~mA}$
(c) The base current will be $0.53 \mathrm{~mA}$
(d) The base current will be $2 \mathrm{~mA}$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Transistor Current Relationships

In bipolar junction transistors, the emitter current (I_E) is the sum of the collector current (I_C) and the base current (I_B). This fundamental principle (I_E = I_C + I_B) is essential for analyzing current distribution in transistor circuits.

Emitter Injection Efficiency

Emitter injection efficiency describes the fraction of injected charge carriers from the emitter that successfully reach the collector. A high efficiency implies that most carriers contribute to the collector current, allowing for accurate computation of the emitter current when the collector current is known.

Percentage-Based Current Calculations

When a percentage of the emitted carriers reach the collector, it becomes possible to determine the overall emitter current by dividing the collector current by the collection efficiency (expressed as a decimal). This calculation is crucial for assessing both the emitter current and the resulting base current through the difference between emitter and collector currents.
