In a plasma globe, a hollow glass sphere is filled with low-pressure gas and a small spherical metal electrode is located at its center. Assume an ac voltage source of peak voltage $V _ { 0 }$ and frequency $f$ is applied between the metal sphere and the ground, and that a person is touching the outer surface of the globe with a fingertip, whose approximate area is 1.0$\mathrm { cm } ^ { 2 } .$ The equivalent circuit for this situation is shown in Fig. $35 ,$ where $R _ { G }$ and $R _ { P }$ are the resistances of the gas and the person, respectively, and $C$ is the capacitance formed by the gas, glass, and finger. (a) Determine $C$ assuming it is a parallel-plate capacitor. The conductive gas and the person's fingertip form the opposing plates of area $A = 1.0 \mathrm { cm } ^ { 2 } .$ The plates are separated by glass (dielectric constant $K = 5.0$ ) of thickness $d = 2.0 \mathrm { mm } .$ (b) In a typical plasma globe, $f = 12 \mathrm { kHz }$ . Determine the reactance $X _ { C }$ of $C$ at this frequency in $\mathrm { M\Omega }$ . (c) The voltage may be $V _ { 0 } = 2500 \mathrm { V } .$ With this high voltage, the dielectric strength of the gas is exceeded and the gas becomes ionized. In this "plasma" state, the gas emits light ( "sparks") and is highly conductive so that $R _ { \mathrm { G } } < X _ { C }$ . Assuming also that $R _ { \mathrm { P } } \ll X _ { C } ,$ estimate the peak current that flows in the given circuit. Is this level of current dangerous? $( d )$ If the plasma globe operated at $f = 1.0 \mathrm { MHz }$ , estimate the peak current that would flow in the given circuit. Is this level of current dangerous?

In a plasma globe, a hollow glass sphere is filled with low-pressure gas and a small spherical metal electrode is located at its center. Assume an ac voltage source of peak voltage $V _ { 0 }$ and frequency $f$ is applied between the metal sphere and the ground, and that a person is touching the outer surface of the globe with a fingertip, whose approximate area is 1.0$\mathrm { cm } ^ { 2 } .$ The equivalent circuit for this situation is shown in Fig. $35 ,$ where $R _ { G }$ and $R _ { P }$ are the resistances of the gas and the person, respectively, and $C$ is the capacitance formed by the gas, glass, and finger.

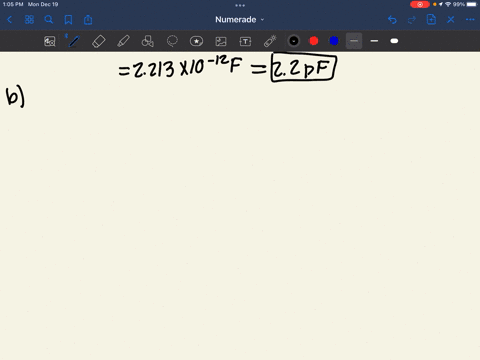

(a) Determine $C$ assuming it is a parallel-plate capacitor. The conductive gas and the person's fingertip form the opposing plates of area $A = 1.0 \mathrm { cm } ^ { 2 } .$ The plates are separated by glass (dielectric constant $K = 5.0$ ) of thickness $d = 2.0 \mathrm { mm } .$ (b) In a typical plasma globe, $f = 12 \mathrm { kHz }$ . Determine the reactance $X _ { C }$ of $C$ at this frequency in $\mathrm { M\Omega }$ . (c) The voltage may be $V _ { 0 } = 2500 \mathrm { V } .$ With this high voltage, the dielectric strength of the gas is exceeded and the gas becomes ionized. In this "plasma" state, the gas
emits light ( "sparks") and is highly conductive so that $R _ { \mathrm { G } } < X _ { C }$ . Assuming also that $R _ { \mathrm { P } } \ll X _ { C } ,$ estimate the peak current that flows in the given circuit. Is this level of current dangerous? $( d )$ If the plasma globe operated at $f = 1.0 \mathrm { MHz }$ , estimate the peak current that would flow in the given circuit. Is this level of current dangerous?

Key Concepts

Plasma Ionization

Plasma ionization refers to the process where a gas becomes electrically conductive when subjected to an electric field strong enough to ionize its molecules. In devices like plasma globes, once the applied voltage exceeds a critical level, the gas transitions to a plasma state, allowing it to conduct electricity and emit light. This behavior is key to understanding the dynamic operation of such devices once dielectric breakdown occurs.

AC Circuit Analysis and Impedance

AC circuit analysis incorporates both resistive and reactive elements to determine the overall impedance of the circuit. By considering the series and parallel combinations of resistors and capacitors, one can predict the current and voltage distribution in the circuit, which is essential for understanding how systems operate under sinusoidal voltage sources.

Electrical Safety and Current Considerations

Electrical safety involves assessing whether the currents in a circuit pose a danger to living beings. Even if high voltages are present, if the circuit’s impedance (due to capacitive reactance or resistive elements) limits the current to low levels, the risk may be minimal. This concept is important when evaluating circuits where human contact is possible, ensuring that the current levels remain within safe limits.

Dielectric Constant and Dielectric Breakdown

The dielectric constant is a measure of a material’s ability to increase the capacitance of a capacitor relative to vacuum. In high-voltage situations, the dielectric material may fail when its dielectric strength is exceeded, leading to ionization of the surrounding gas. Understanding both the enhancement provided by the dielectric constant and the limits imposed by dielectric breakdown is crucial for designing and analyzing systems that operate near these limits.

Parallel?Plate Capacitor

This concept involves modeling a capacitor as two conducting plates separated by a dielectric material. The capacitance is determined by the area of the plates, the separation distance between them, and the dielectric constant of the material in between, following the relationship C = ??K A/d. This model simplifies the analysis of capacitors in circuits where the geometry approximates flat, parallel surfaces.

Capacitive Reactance

Capacitive reactance is the opposition that a capacitor presents to alternating current (AC), and it depends inversely on both the frequency of the applied voltage and the capacitance itself, given by X_C = 1/(2?fC). This concept is fundamental in AC circuit analysis, as it shows how capacitors behave differently at various frequencies, which in turn affects the overall impedance and current flow in the circuit.
