In a straight edge diffraction pattern, one observes that...

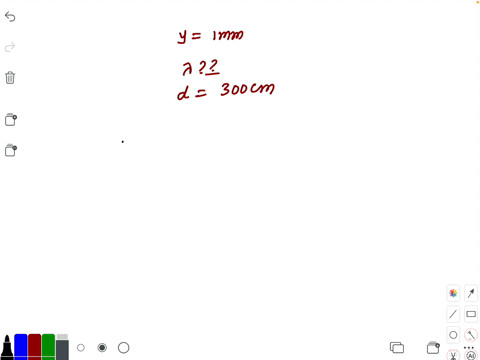

In a straight edge diffraction pattern, one observes that the most intense maximum occurs at a distance of $1 \mathrm{~mm}$ from the edge of the geometrical shadow. Calculate the wavelength of light, if the distance between the screen and the straight edge is $300 \mathrm{~cm}$.

Key Concepts

Fresnel Diffraction

Fresnel diffraction deals with wave propagation when the source or observation screen (or both) are at finite distances from the diffracting object. Unlike Fraunhofer diffraction, which applies when these distances are effectively infinite and the wavefronts can be considered planar, Fresnel diffraction takes into account the curvature of the wavefronts. This is essential for accurately describing the diffraction effects seen close to edges or apertures in practical setups.

Fresnel Integrals and the Cornu Spiral

The Fresnel integrals, customarily denoted as C(v) and S(v), arise in the evaluation of the diffraction integral when dealing with Fresnel diffraction. Their graphical representation via the Cornu spiral allows one to conveniently determine the amplitude and phase of the diffracted wave at different points on the observation screen. The construction of the Cornu spiral helps in understanding how light from different portions of the wavefront interferes to produce the observed fringe pattern, including the positions of intensity maxima and minima.

Diffraction Geometry and Scaling Parameter

In diffraction problems the geometry of the experimental setup, particularly the distance from the diffracting edge or aperture to the observation screen, is crucial. A key concept is the introduction of a dimensionless variable (often denoted by v) which scales the physical distance away from the geometrical edge by a factor involving the wavelength and the screen distance. This scaling allows one to relate measured positions of fringes (for example, the displacement of a maximum from the geometrical shadow) to the underlying wavelength and to predict diffraction patterns in a general way.
