In an oscillating series R L C circuit, find the time required for the maximum energy present in

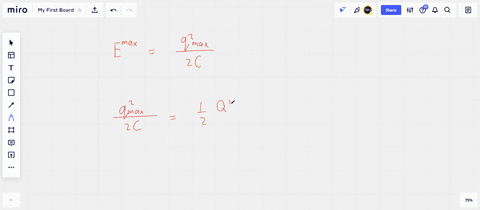

step 1 31 .26, we have an RLC circuit, and we'd like to find how long it takes for the maximum energy s

In an oscillating series R L C circuit, find the time...

Key Concepts

Energy Decay in Electrical Circuits

The energy stored in a capacitor is given by one-half times the capacitance times the square of the charge (1/2 Cq²). In an oscillating RLC circuit, as the system loses energy over time due to resistance, both the charge on the capacitor and the stored energy decay exponentially. This decay in energy is a key characteristic of dissipative systems.

Exponential Decay and Half-Life

Exponential decay describes a process where a quantity decreases at a rate proportional to its current value. The half-life is the time required for the quantity to reduce to half its initial value. In the context of the RLC circuit, determining the time at which the energy in the capacitor halves involves solving an exponential decay equation that accounts for the damping introduced by the resistor.

RLC Circuit

An RLC circuit is an electrical circuit consisting of a resistor (R), an inductor (L), and a capacitor (C) connected in series or parallel. It is a fundamental system in electrical engineering that exhibits oscillatory behavior due to the interplay between the energy stored in the magnetic field of the inductor and the electric field of the capacitor, while the resistor introduces energy dissipation.

Damped Harmonic Oscillator

A damped harmonic oscillator is a system in which oscillations decrease in amplitude over time because of an energy loss mechanism, such as resistance or friction. In the context of an RLC circuit, the resistor causes the amplitude of the charge oscillations to decay exponentially, which is characteristic of a damped oscillator.
