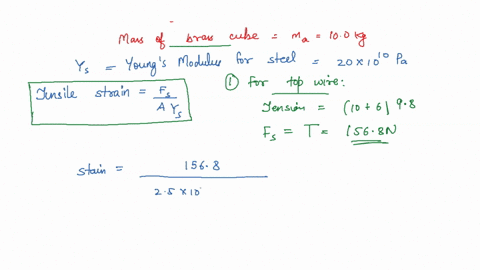

In constructing a large mobile, an artist hangs an aluminum sphere of mass 6.0 kg from a vertical steel wire 0.50 m long and 2.5 $\times$ 10$^{-3}$ cm$^2$ in cross-sectional area. On the bottom of the sphere he attaches a similar steel wire, from which he hangs a brass cube of mass 10.0 kg. For each wire, compute (a) the tensile strain and (b) the elongation.

Key Concepts

Hooke's Law

Hooke's Law states that, within the elastic limit of a material, the stress applied to it is directly proportional to the strain experienced. This linear relationship allows one to calculate the deformation (elongation) of a material based on its Young's modulus, the applied force, and its original dimensions.

Young's Modulus

Young's modulus is a fundamental material property that quantifies the stiffness of a material under tensile loading. It is expressed as the ratio of stress to strain in the linear (elastic) region of the stress-strain curve, and it is central to determining how much a material will stretch under an applied force.

Tensile Strain

Tensile strain is a measure of deformation representing the ratio of the change in length to the original length when a material is subjected to a stretching force. It is a dimensionless quantity that indicates how much a structural element elongates under tension before reaching its elastic limit.

Elongation

Elongation refers to the absolute change in the length of a material after the application of a tensile force. It is calculated by multiplying the tensile strain by the original length of the material and is a direct indicator of the material's deformation under load.

Tensile Stress

Tensile stress is defined as the force experienced per unit cross-sectional area of a material when subjected to a pulling load. It is essential for analyzing how internal forces are distributed within a material and for predicting the onset of deformation or failure.
