In electronics, the formula $V=I R$ is called Ohm's Law. It gives the relationship in a circuit between the voltage $V$ (in volts), the current I (in amperes), and the resistance $\boldsymbol{R}(\text { in ohms })$ Electronics The impedance $Z$ in an AC (alternating current) circuit is a measure of how much the circuit impedes (hinders) the flow of current through it. The impedance is related to the voltage $V$ and the current $I$ by the following formula. $$ V=I Z $$ If a circuit has a current of $(0.5+2.0 i)$ amps and an impedance of $(0.4-3.0 i)$ ohms, find the voltage.

In electronics, the formula $V=I R$ is called Ohm's Law. It gives the relationship in a circuit between the voltage $V$ (in volts), the current I (in amperes), and the resistance
$\boldsymbol{R}(\text { in ohms })$
Electronics The impedance $Z$ in an AC (alternating current) circuit is a measure of how much the circuit impedes (hinders) the flow of current through it. The impedance is related to the voltage
$V$ and the current $I$ by the following formula.
$$
V=I Z
$$

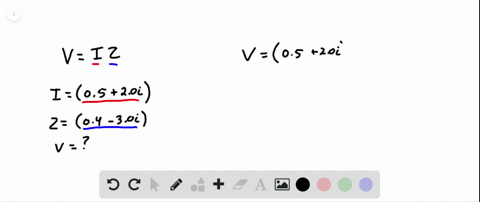

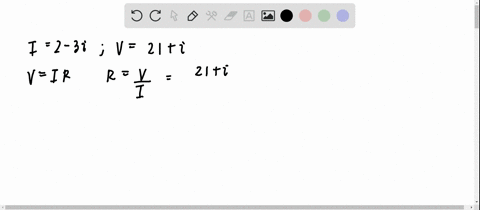

If a circuit has a current of $(0.5+2.0 i)$ amps and an impedance of $(0.4-3.0 i)$ ohms, find the voltage.

Key Concepts

Complex Numbers in AC Analysis

In the analysis of AC circuits, voltage, current, and impedance are often expressed as complex numbers, where the real part typically represents the resistive component and the imaginary part represents the reactive component. This use of complex numbers allows for a more comprehensive analysis of circuit behavior, including phase shifts between voltage and current.

Complex Multiplication

Complex multiplication is a mathematical operation used to combine two complex numbers, and it is crucial in AC circuit analysis when calculating quantities like voltage from known current and impedance. The process involves multiplying the magnitudes while appropriately combining the real and imaginary parts, which reflects the combined effects of resistance and reactance in the circuit.

AC Circuit Impedance

Impedance is a generalization of resistance used in AC circuits that accounts not only for the opposition to current flow provided by resistance, but also for the phase differences between voltage and current caused by capacitors and inductors. It is measured in ohms and is expressed as a complex number to incorporate both magnitude and phase information.

Ohm's Law

Ohm's Law is a fundamental principle in electrical circuits that relates voltage, current, and resistance through the equation V = I × R. It is essential for analyzing how electrical circuits operate, allowing one to calculate any one of the three variables if the other two are known.
