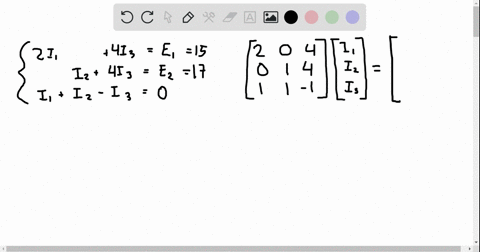

In Exercises $65-68$ , consider the circuit shown in the figure. The currents $I_{1}, I_{2},$ and $I_{3}$ , in amperes, are the solution of the system of linear equations. $$\left\{\begin{aligned} 2 I_{1} &+4 I_{3}=E_{1} \\ I_{2}+4 I_{3} &=E_{2} \\ I_{1}+I_{2}-I_{3} &=0 \end{aligned}\right.$$ where $E_{1}$ and $E_{2}$ are voltages. Use the inverse of the coefficient matrix of this system to find the unknown currents for the given voltages. $$\begin{array}{l}{E_{1}=10 \mathrm{volts}} \\ {E_{2}=10 \mathrm{volts}}\end{array}$$

In Exercises $65-68$ , consider the circuit shown in the figure. The currents $I_{1}, I_{2},$ and $I_{3}$ , in amperes, are the solution of the system of linear equations.
$$\left\{\begin{aligned} 2 I_{1} &+4 I_{3}=E_{1} \\ I_{2}+4 I_{3} &=E_{2} \\ I_{1}+I_{2}-I_{3} &=0 \end{aligned}\right.$$
where $E_{1}$ and $E_{2}$ are voltages. Use the inverse of the coefficient matrix of this system to find the unknown currents for the given voltages.
$$\begin{array}{l}{E_{1}=10 \mathrm{volts}} \\ {E_{2}=10 \mathrm{volts}}\end{array}$$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

System of Linear Equations

A system of linear equations is a set of equations where each equation is linear in its variables. In many applied fields, such as engineering and physics, these systems arise naturally and methods from linear algebra are used to find common solutions for all equations simultaneously.

Coefficient Matrix

The coefficient matrix is a compact way to represent the numerical coefficients from each equation in a system of linear equations. It encapsulates the structure of the equations and is essential for applying algebraic methods, such as matrix inversion, in solving the system.

Matrix Inversion

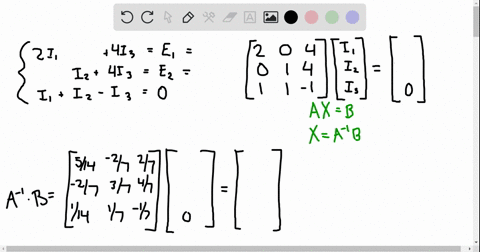

Matrix inversion is a process in linear algebra where one finds a matrix that, when multiplied by the original matrix, produces the identity matrix. This inverse is instrumental in solving systems of equations, as it allows for the direct computation of the unknown variables when the system is represented in matrix form.

Application in Circuit Analysis

In circuit analysis, systems of linear equations are often derived from fundamental laws such as Kirchhoff's voltage and current laws. Using techniques like representing the system with a coefficient matrix and applying matrix inversion helps in efficiently computing electrical quantities like current and voltage in complex circuits.
