In Fig. 12-47, a nonuniform bar is suspended at rest in a...

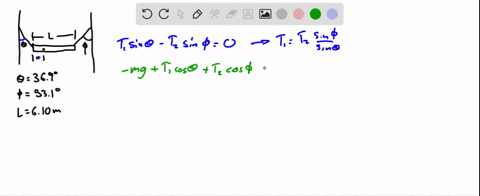

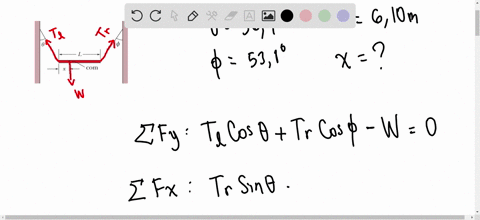

In Fig. $12-47, \quad \mathrm{a}$ nonuniform bar is suspended at rest in a horizontal position by two massless cords. One cord makes the angle $\theta=$ $36.9^{\circ}$ with the vertical; the other makes the angle $\phi=$ $53.1^{\circ}$ with the vertical. If the length $L$ of the bar is $6.10 \mathrm{m},$ compute the distance $x$ from the left end of the bar to its center of mass.

In Fig. $12-47, \quad \mathrm{a}$ nonuniform bar is suspended
at rest in a horizontal position
by two massless cords. One
cord makes the angle $\theta=$
$36.9^{\circ}$ with the vertical; the other makes the angle $\phi=$
$53.1^{\circ}$ with the vertical. If the
length $L$ of the bar is $6.10 \mathrm{m},$
compute the distance $x$ from the left end of the bar to its center of mass.

Key Concepts

Static Equilibrium

Static equilibrium refers to the condition in which an object is at rest and the sum of all forces and torques acting upon it is zero. This concept is foundational in mechanics, ensuring that no net motion or rotation occurs, and it is critical when analyzing systems where forces are balanced, such as suspended bars or beams.

Torque (Moment) Equilibrium

Torque, or moment, is the product of a force and the distance from a pivot point at which the force is applied. Torque equilibrium means that the clockwise and counterclockwise moments are equal, preventing any angular acceleration. This principle is essential for solving problems where a nonuniform object must remain balanced, as it helps determine unknown forces or distances relative to the center of mass.

Center of Mass

The center of mass of an object is the point at which its mass is considered to be concentrated for the purposes of analyzing its motion under external forces. In cases involving nonuniform mass distribution, locating the center of mass is crucial to understanding the equilibrium and rotational behavior of the object, particularly when subjected to multiple, angled forces.

Free-Body Diagram

A free-body diagram is a tool used to visually represent all the forces acting on an object. By depicting forces such as tension, weight, and applied loads, it assists in the systematic application of equilibrium conditions and torque calculations, which are vital for solving mechanical balance problems.
