In Fig. 12-64, block A (mass 10 kg ) is in equilibrium, but it would slip if block B (mass 5.0 k

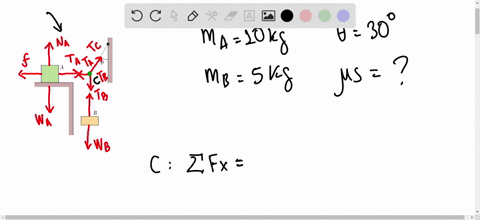

step 1 For this problem on the topic of equilibrium and elasticity, we are shown a block of mass 10KG,

In Fig. 12-64, block A (mass 10 kg ) is in equilibrium, but...

In Fig. $12-64,$ block $A$ (mass 10 $\mathrm{kg}$ ) is in equilibrium, but it
would slip if block $B$ (mass 5.0 $\mathrm{kg} )$ were any heavier. For angle $\theta=30^{\circ}$ what is the coefficient of static friction between block $A$ and the sur-
face below it?

Key Concepts

Critical Condition for Slipping

The critical condition for slipping occurs when the frictional force exactly equals the maximum static friction available. At this threshold, any infinitesimal increase in the force attempting to cause motion will overcome static friction and initiate slipping. Analyzing this condition helps in determining the minimum friction coefficient needed to maintain equilibrium.

Force Components on Inclined Surfaces

When dealing with inclined surfaces, gravitational force is typically decomposed into components parallel and perpendicular to the surface. This decomposition is essential for accurately calculating both the normal force, which influences friction, and the force that tends to cause sliding along the incline.

Static Friction

Static friction is the force that resists the initiation of sliding motion between two surfaces in contact. It has a maximum value given by the product of the coefficient of static friction and the normal force, and this relationship is critical in determining whether an applied force will cause motion or if the object remains stationary.

Static Equilibrium

Static equilibrium means that a body is at rest, with the net force and net moment acting on it equal to zero. This principle allows engineers and physicists to set up equations where all forces, including gravitational, applied, frictional, and normal forces, balance out, ensuring that the object does not accelerate or rotate.

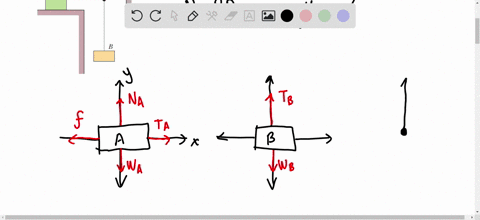

Free-Body Diagram

A free-body diagram is a graphical representation used to visualize all the forces acting on a single object. By isolating the object and depicting forces such as weight, normal force, friction, and any applied forces, it provides a clear method for applying Newton's laws to analyze and solve for unknown quantities in equilibrium problems.
