In Fig. 23-45, a small circular hole of radius R=1.80 cm has been cut in the middle of an infini

step 1 Problem 23 .34, we have an infinite sheet of charge with this positive charge density, except fo

In Fig. 23-45, a small circular hole of radius R=1.80 cm has...

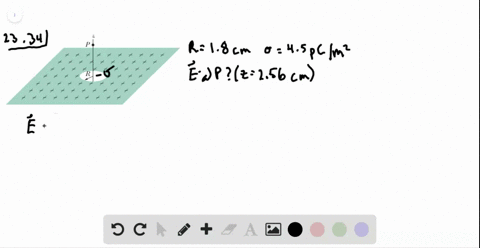

In Fig. $23-45,$ a small circular hole of radius $R=1.80 \mathrm{cm}$ has been cut in the middle of an infinite, flat, nonconducting surface that has uniform charge density $\sigma=4.50 \mathrm{pC} / \mathrm{m}^{2} . \mathrm{A} z$ axis, with its its origin at the hole's center, is perpendicular to the surface. In unit- vector notation, what is the electric ficld at point $P$ at $z=2.56 \mathrm{cm}$ ? (Hint: See Eq. $22-26$ and use superposition.)

In Fig. $23-45,$ a small circular hole of radius $R=1.80 \mathrm{cm}$ has
been cut in the middle of an infinite, flat, nonconducting surface
that has uniform charge density $\sigma=4.50 \mathrm{pC} / \mathrm{m}^{2} . \mathrm{A} z$ axis, with its its
origin at the hole's center, is perpendicular to the surface. In unit-
vector notation, what is the electric ficld at point $P$ at $z=2.56 \mathrm{cm}$ ?
(Hint: See Eq. $22-26$ and use superposition.)

Key Concepts

Superposition Principle

The superposition principle states that in a linear system, the net effect at any point due to multiple sources is the vector sum of the effects produced by each individual source. In electrostatics, this allows us to calculate the total electric field by summing the fields generated by different charge distributions, including when parts of the overall distribution are removed or added.

Electric Field of an Infinite Uniformly Charged Plane

An infinite plane with uniform charge density produces a constant electric field independent of distance from the plane. This property arises from the symmetry of the distribution, which simplifies the field calculation using Gauss's Law. The result serves as a fundamental reference when analyzing modifications to a uniformly charged surface.

Electric Field Due to a Charged Disk

A charged disk is a finite, circular region of charge whose electric field can be obtained by integrating contributions from each element of the disk. This derivation often involves setting up an integral in cylindrical coordinates and serves as a key technique in problems where a portion of a larger charged plane (such as a circular hole) is treated as a missing or added region.

Removal of a Charged Region (Hole in a Charged Distribution)

When a part of a charged distribution is removed, such as a circular hole in an otherwise uniformly charged plane, the overall electric field at a point can be determined by subtracting the electric field that would have been produced by the missing charge. This approach leverages the superposition principle by considering the effect of adding the negative of the removed charge distribution to the complete system.
