In Fig. 25-28, a potential difference V=100 V is applied across a capacitor arrangement with cap

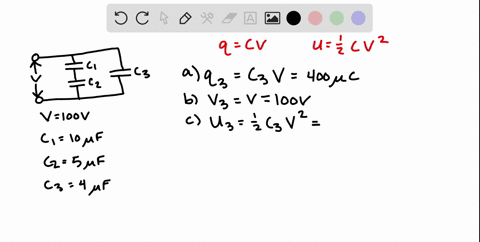

step 1 Alright, so for this problem we have this circuit. So this is the battery and we have two capaci

In Fig. 25-28, a potential difference V=100 V is applied...

In Fig. $25-28,$ a potential difference $V=100 \mathrm{V}$ is applied across a capacitor arrangement with capacitances $C_{1}=10.0 \mu \mathrm{F}$ $C_{2}=5.00 \mu \mathrm{F},$ and $C_{3}=4.00 \mu \mathrm{F} .$ What are (a) charge $q_{3},$ (b) poten- tial difference $V_{3},$ and $(\mathrm{c})$ stored energy $U_{3}$ for capacitor $3,$ (d) $q_{1}$ (e) $V_{1},$ and $(\mathrm{f}) U_{1}$ for capacitor $1,$ and $(\mathrm{g}) q_{2},(\mathrm{h}) V_{2},$ and $(\mathrm{i}) U_{2}$ for capacitor 2$?$

In Fig. $25-28,$ a potential difference $V=100 \mathrm{V}$ is applied
across a capacitor arrangement with capacitances $C_{1}=10.0 \mu \mathrm{F}$ $C_{2}=5.00 \mu \mathrm{F},$ and $C_{3}=4.00 \mu \mathrm{F} .$ What are (a) charge $q_{3},$ (b) poten-
tial difference $V_{3},$ and $(\mathrm{c})$ stored energy $U_{3}$ for capacitor $3,$ (d) $q_{1}$ (e) $V_{1},$ and $(\mathrm{f}) U_{1}$ for capacitor $1,$ and $(\mathrm{g}) q_{2},(\mathrm{h}) V_{2},$ and $(\mathrm{i}) U_{2}$ for
capacitor 2$?$

Key Concepts

Voltage Distribution in Capacitor Networks

When capacitors are connected in series or parallel configurations, the overall applied voltage divides among them in a predictable manner. In series circuits, the sum of the individual voltage drops equals the total applied voltage, while in parallel, each capacitor experiences the same voltage as the source. Understanding voltage distribution is vital for determining individual capacitor behaviors in a network.

Charge-Voltage Relationship

The charge-voltage relationship is expressed by the fundamental equation Q = CV, where Q is the charge stored, C is the capacitance, and V is the voltage across the capacitor. This formula is the cornerstone for calculating how much charge is held by a capacitor when a specific voltage is applied.

Energy Storage in Capacitors

Capacitors store energy in the electric field created between their plates. The energy stored in a capacitor can be calculated using the formula U = ½CV². This concept is important for evaluating how much energy is stored in each capacitor in a circuit and is widely applied in various electronics and power applications.

Series and Parallel Capacitor Arrangements

Capacitors can be connected in series or parallel, and their overall behavior depends on this configuration. In a series arrangement, the charge on each capacitor is the same, while in parallel, the voltage across each capacitor is the same. These principles are crucial for determining how voltages and charges distribute in circuits comprising multiple capacitors.

Capacitance

Capacitance is the ability of a capacitor to store electrical energy in the form of electric charge. It is quantified by the ratio of the amount of charge stored on the plates of the capacitor to the voltage across its plates. This concept is fundamental to understanding how capacitors work in electrical circuits.

Equivalent Capacitance

Equivalent capacitance is a method used to simplify complex capacitor networks into a single capacitor that has the same overall effect on the circuit. For series connections, the reciprocals of the capacitances add up, while for parallel connections, the capacitances add directly. This concept is essential for analyzing and solving circuits with multiple capacitors.
