In Fig. 25-36, the capacitances are C1=1.0 μF and C2=3.0 μF, and both capacitors are charged to

step 1 Part A of the problem, the potential difference between the point A and B can be found by calcul

In Fig. 25-36, the capacitances are C1=1.0 μF and C2=3.0 μF,...

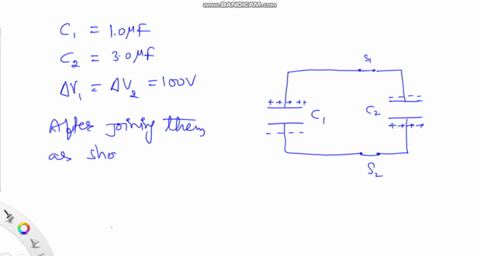

In Fig. 25-36, the capacitances are $C_{1}=1.0 \mu \mathrm{F}$ and $C_{2}=3.0 \mu \mathrm{F},$ and both capacitors are charged to a potential difference of $V=100 \mathrm{V}$ but with opposite polarity as shown. Switches $\mathrm{S}_{1}$ and $\mathrm{S}_{2}$ are now closed. (a) What is now the potential difference between points $a$ and $b ?$ What now is the charge on capacitor (b) 1 and (c) 2$?$

Key Concepts

Capacitance

Capacitance is a fundamental property of a capacitor that quantifies its ability to store electrical charge per unit voltage. It is defined by the formula Q = CV, where Q is the stored charge, C is the capacitance, and V is the voltage across the capacitor.

Charge-Voltage Relationship

The relationship Q = CV directly links the quantity of charge stored on a capacitor to the voltage across it. This principle is essential in analyzing circuits involving capacitors as it allows one to calculate the charge when the capacitance and voltage are known.

Parallel Capacitor Connections

When capacitors are connected in parallel, they are exposed to the same voltage. The total capacitance available in a parallel connection is simply the sum of the individual capacitances, and this configuration influences the redistribution of charge when the capacitors are connected together.

Charge Redistribution and Conservation of Charge

In a circuit where pre-charged capacitors are connected, charges will redistribute among the capacitors until electrostatic equilibrium is reached. Crucially, the overall charge in the circuit is conserved according to the principle of charge conservation, although the redistribution may involve cancellation when initial charges are of opposite polarity.

Potential Distribution in Circuits

The potential difference between two points in a circuit is determined by how charges are distributed and the interconnection of circuit elements. In capacitor networks, especially after connection of components with initially different or opposite charges, calculating the final equilibrium potential difference involves understanding both the voltage sharing in parallel arrangements and the effects of charge conservation.
