In Fig. 31-7,R=200 Ω, C=70.0 μF L=230 mH, fd=60.0 Hz, and 𝒵m=36.0 V. What are (a) Z, (b) ϕ, and

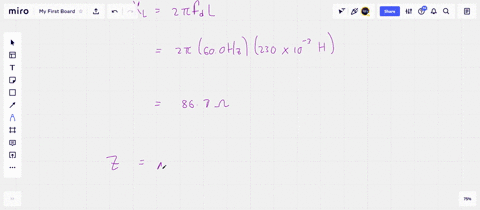

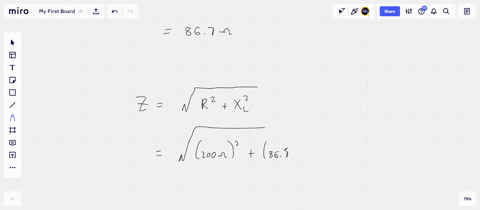

step 1 Hello student this is problem from electromagnetic induction and alternating current chapter and

In Fig. 31-7,R=200 Ω, C=70.0 μF L=230 mH, fd=60.0 Hz, and...

Key Concepts

AC Circuit Analysis

This concept involves the study and analysis of electrical circuits powered by alternating current, where voltages and currents vary sinusoidally over time. It entails understanding how different circuit elements, like resistors, capacitors, and inductors, respond to sinusoidal excitation, and how their interactions determine the overall behavior of the circuit in terms of amplitude and phase relationships.

Impedance

Impedance is a complex quantity that represents the total opposition a circuit presents to the flow of alternating current. It combines resistance (the real part) and reactance (the imaginary part) into a single measure. Impedance is typically expressed using complex numbers, allowing both magnitude and phase relationships between voltage and current to be analyzed and calculated.

Reactance

Reactance is the portion of impedance that arises due to capacitors and inductors in an AC circuit. It quantifies the opposition to current change produced by these components and is frequency-dependent. There are two types: inductive reactance, which increases with frequency and tends to cause the current to lag the voltage, and capacitive reactance, which decreases with frequency and tends to cause the current to lead the voltage.

Phase Angle

The phase angle in an AC circuit indicates the difference in phase between the voltage across and the current through a circuit element. It is derived from the relationship between the resistive and reactive components of the impedance, typically using the arctan function of the ratio of reactance to resistance. The phase angle is crucial in determining the power factor and understanding the temporal relationship between voltage and current waveforms.

Phasor Diagram

A phasor diagram is a graphical representation that illustrates the magnitude and phase relationships between sinusoidal functions, such as voltage and current in AC circuits. In these diagrams, vectors (phasors) represent the amplitudes and phases of the signals, making it easier to visualize how the elements like resistance and reactance combine to form the overall impedance and dictate the phase difference in the circuit.
