In Fig. 33-73, a long. straight copper wire (diameter 2.50 mm and resistance 1.00 Ωper 300 m )

step 1 For this problem on the topic of electromagnetic waves, we are shown a long straight copper wire

In Fig. 33-73, a long. straight copper wire (diameter 2.50...

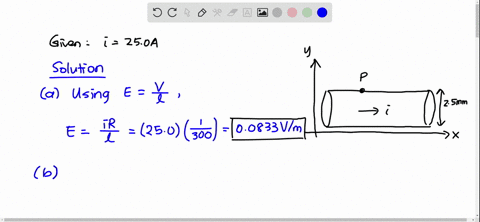

In Fig. $33-73,$ a long. straight copper wire (diameter $2.50 \mathrm{~mm}$ and resistance $1.00 \Omega$ per $300 \mathrm{~m}$ ) carries a uniform current of 25.0 A in the positive $x$ direction. For point $P$ on the wire's surface, calculate the magnitudes of (a) the electric field $\vec{E}$, (b) the mag- netic field $\vec{B}$, and (c) the Poynting vector $\vec{S}$, and (d) determine the direction of $\vec{S}$

Key Concepts

Magnetic Field Around a Current-Carrying Wire

This concept is based on Ampère’s law, which describes the magnetic field produced by an electric current. For a long, straight wire carrying a uniform current, the magnetic field lines form concentric circles around the wire, with the field strength decreasing inversely with distance from the wire. This phenomenon is essential in understanding how currents interact with magnetic forces and fields in electromagnetic systems.

Poynting Vector

The Poynting vector represents the rate of electromagnetic energy flow per unit area and is defined as the cross product of the electric field and the magnetic field divided by the permeability of free space. It explains how energy is transmitted through the electromagnetic fields surrounding circuit elements, even in regions outside the physical conductors, highlighting that energy flow is not confined to the wires but occurs throughout the space around them.

Electric Field in a Conductor

This concept refers to the internal electric field that drives a current through a conductor. It describes the relationship between the electric potential difference (voltage) and the length of the conductor, and is directly related to the material's resistivity via Ohm’s law. The electric field is responsible for accelerating charged particles within the conductor, which in turn establishes a steady current when balanced by collisions with the lattice.

Electromagnetic Energy Transport in Circuits

This concept encompasses the idea that energy is transferred in electrical circuits via the electromagnetic fields rather than merely through the movement of charges within conductors. Based on the Poynting theorem, it shows that energy from a source, such as a battery, is conveyed through the fields to the load, thereby unifying the concepts of electric fields, magnetic fields, and energy flow in a coherent framework.
