Question
In Fig. $34-2, R=5.0 \Omega, L=0.40 \mathrm{H}$, and $\varepsilon=20 \mathrm{~V}$. Find the current in the circuit $0.20 \mathrm{~s}$ after the switch is first closed.
Step 1
Here, $L = 0.40 \, \text{H}$ and $R = 5.0 \, \Omega$. So, we substitute these values into the formula to get: \[\tau = \frac{0.40 \, \text{H}}{5.0 \, \Omega} = 0.08 \, \text{s}\] Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
If, in Fig. 34-2, $R=20 \Omega$, $L=0.30 \mathrm{H}$, and $\varepsilon=90 \mathrm{~V}$, what will be the current in the circuit $0.050 \mathrm{~s}$ after the switch is closed? We are going to use the exponential equation for $i$ given in Eq. (34.9). The time constant for this circuit is $\mathrm{L} / \mathrm{R}=0.015 \mathrm{~s}$, and $i_{\infty}=\varepsilon / \mathrm{R}=$ $4.5 \mathrm{~A}$. Then $$ i=i_{x}\left(1-e^{-i /\langle L / R)}\right)=(4.5 \mathrm{~A})\left(1-e^{-333}\right)=(4.5 \mathrm{~A})(1-0.0357)=4.3 \mathrm{~A} $$
If, in Fig. $34-2, R=20 \Omega, L=0.30 \mathrm{H}$, and $\mathscr{E}=90 \mathrm{~V}$, what will be the current in the circuit $0.050 \mathrm{~s}$ after the switch is closed? We are going to use the exponential equation for $i$ given on p. 374 . The time constant for this circuit is $L / R=0.015 \mathrm{~s}$, and $i_{\infty}=\mathscr{/} R=4.5 \mathrm{~A}$. Then $$ i=i_{\infty}\left(1-e^{-t / L / R}\right)=(4.5 \mathrm{~A})\left(1-e^{-3.33}\right)=(4.5 \mathrm{~A})(1-0.0357)=4.3 \mathrm{~A} $$

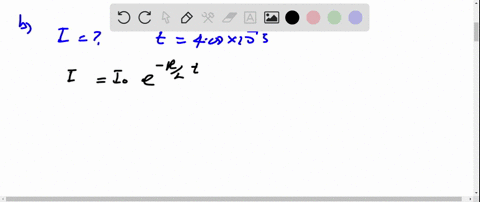

. In Fig. $30.11 .$ suppose that $\varepsilon=60.0 \mathrm{~V}, R=240 \Omega .$ and $L=0.160 \mathrm{H}$. With switch $S_{2}$ open, switch $S_{1}$ is left closed until a constant currcnt is cstablishcd. Then $S_{2}$ is closcd and $S_{1}$ opcned, taking the battery out of the circuit. (a) What is the initial current in the resistor, just after $S_{2}$ is closed and $S_{1}$ is opened? (b) What is the current in the resistor at $t=4.00 \times 10^{-4} \mathrm{~s} ?$ (c) What is the potcntial differcnoe betwecn points $b$ and $c$ at $t=4.00 \times 10^{-4} \mathrm{~s}$ ? Which point is at a higher potcntial? (d) How long does it take the current to decrease to half its initial value?
