In Fig. 35-34, a light ray is incident at angle θ1=50^∘ on a series of five transparent layers w

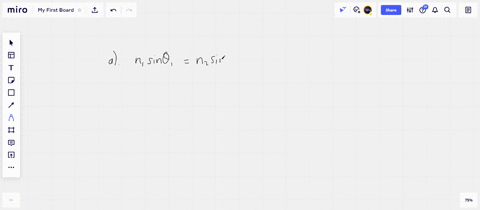

step 1 35 .10, we have a ray of light that's incident on this stack of transparent things. We want to k

In Fig. 35-34, a light ray is incident at angle θ1=50^∘ on a...

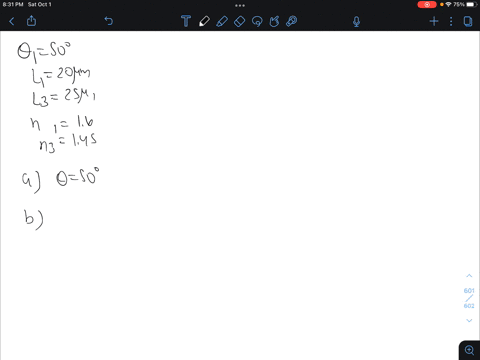

In Fig. $35-34,$ a light ray is incident at angle $\theta_{1}=50^{\circ}$ on a series of five transparent layers with parallel boundaries. For layers 1 and $3, L_{1}=$ $20 \mu \mathrm{m}, L_{3}=25 \mu \mathrm{m}, n_{1}=$ $1.6,$ and $n_{3}=1.45 .$ (a) At what angle does the light emerge back into air at the right? (b) How much time does the light take to travel through layer 3?

Key Concepts

Speed of Light in a Medium

In any medium other than vacuum, the speed of light is diminished relative to its speed in vacuum according to the medium’s refractive index. This principle, expressed as c/n (where c is the speed of light in vacuum and n is the refractive index), is crucial for determining how quickly light propagates through various materials.

Optical Path Length and Propagation Time

The optical path length is the product of the physical distance light travels in a medium and the refractive index of that medium. It is a key concept for calculating the effective distance light covers in terms of phase change and is directly related to the travel time since the speed of light in the medium is reduced by its refractive index.

Snell's Law

This fundamental principle of optics describes how a light ray bends when it passes from one medium to another with a different refractive index. It states that the product of the refractive index and the sine of the incident (or refracted) angle is conserved across the boundary, which is essential for tracking the change in direction of light as it transitions between different materials.

Refraction through Plan-Parallel Plates

When light traverses a medium with two parallel boundaries, such as a flat slab of transparent material, the ray will emerge parallel to its original incident direction. This concept helps in understanding how layered media affect the path of light without altering its parallelism, even though the ray experiences lateral displacement within the material.
