In Fig. 8-54, a block slides along a track from one level to...

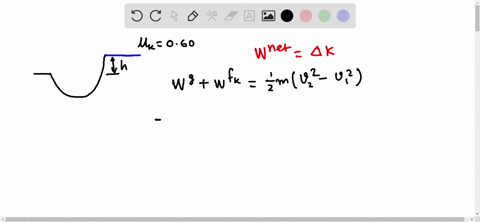

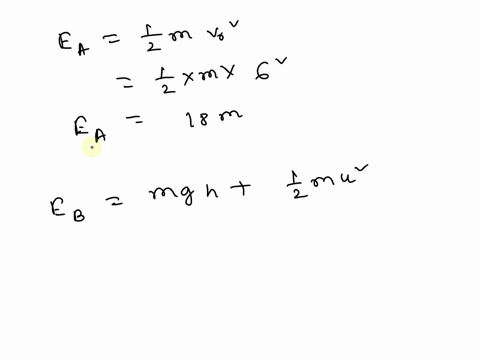

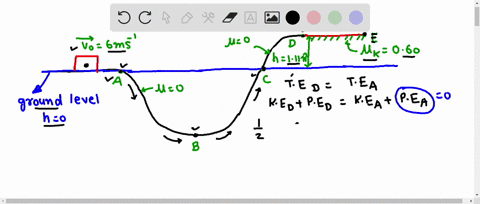

In Fig. $8-54$, a block slides along a track from one level to $a$ higher level after passing through an intermediate valley. The track is frictionless until the block reaches the higher level. There a frictional force stops the block in a distance $d$. The block's initial speed $v_{0}$ is $6.0 \mathrm{~m} / \mathrm{s}$, the height difference $h$ is $1.1 \mathrm{~m}$, and $\mu_{k}$ is $0.60 .$ Find $d$.

Key Concepts

Conservation of Mechanical Energy (with non-conservative forces)

This concept involves analyzing energy changes in a system where mechanical energy may not be conserved due to non-conservative forces like friction. In problems like the one described, gravitational potential energy, kinetic energy, and the work done against friction all have to be considered together. Energy lost due to friction is accounted for as work done by friction, reducing the mechanical energy available for other transformations.

Frictional Force and Work Done by Friction

Friction is a force that opposes the relative motion between surfaces in contact, doing work that converts mechanical energy into thermal energy. In situations where a block moves over a surface with kinetic friction, the frictional force is calculated using the coefficient of kinetic friction and the normal force. The work done by friction, determined by multiplying this force by the distance over which it acts, is subtracted from the mechanical energy of the system.

Kinetic Energy

Kinetic energy is the energy that an object possesses due to its motion. It is directly proportional to the mass of the object and the square of its speed. In the context of energy conservation in dynamics, the initial kinetic energy of an object is converted into potential energy as it moves to a higher elevation, and any losses (like those from friction) reduce the final kinetic energy.

Gravitational Potential Energy

Gravitational potential energy is the energy stored in an object as a result of its position in a gravitational field. When a block ascends to a higher level, some of its mechanical energy is transformed into gravitational potential energy, which depends on the height difference and gravitational acceleration. This transformation plays a key role in determining the remaining kinetic energy or the work required to overcome friction.
