In Fig. E 24.20, C1=6.00 μF, C2=3.00 μF, and C3=5.00 μF . The capacitor network is connected

step 1 Everybody. So for this one, we're asked what is the charge and the capser is C and three. And wh

In Fig. E 24.20, C1=6.00 μF, C2=3.00 μF, and C3=5.00 μF...

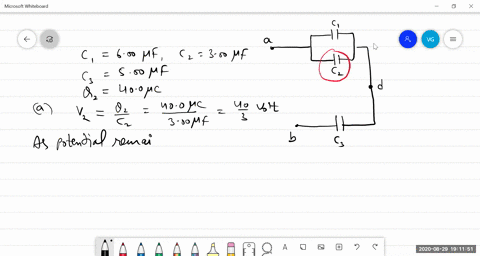

In Fig. $\mathrm{E} 24.20, \quad C_{1}=6.00 \mu \mathrm{F}, \quad C_{2}=3.00 \mu \mathrm{F},$ and $C_{3}=5.00 \mu \mathrm{F}$ . The capacitor network is connected to an applied potential $V_{a b}$ . After the charges on the capacitors have reached their final values, the charge on $C_{2}$ is 40.0$\mu \mathrm{C}$ (a) What are the charges on capacitors $C_{1}$ and $C_{3} ?$ (b) What is the applied voltage $V_{a b} ?$

In Fig. $\mathrm{E} 24.20, \quad C_{1}=6.00 \mu \mathrm{F}, \quad C_{2}=3.00 \mu \mathrm{F},$ and
$C_{3}=5.00 \mu \mathrm{F}$ . The capacitor network is connected to an applied potential $V_{a b}$ . After the charges on the capacitors have reached their final values, the charge on $C_{2}$ is 40.0$\mu \mathrm{C}$ (a) What are the charges on capacitors $C_{1}$ and $C_{3} ?$ (b) What is the applied
voltage $V_{a b} ?$

Key Concepts

Voltage and Charge Distribution in Capacitor Networks

In capacitor networks, particularly those combining series and parallel connections, understanding how voltage divides across series elements and how charge is shared among parallel elements is key. Conservation of charge and the principle that series-connected capacitors must carry the same charge simplify analysis and enable the determination of individual capacitor values and the overall applied voltage.

Charge-Voltage Relationship

The fundamental relationship Q = CV is essential in understanding capacitor behavior. It states that the charge (Q) stored on a capacitor is directly proportional to its capacitance (C) and the voltage (V) across it. This relationship is used to calculate unknown quantities in a circuit once the voltage or capacitance is known.

Equivalent Capacitance

Equivalent capacitance is a method of replacing a network of capacitors with a single capacitor that has the same effect on the circuit. In parallel configurations, capacitances add directly, while in series configurations, the reciprocals of the capacitances sum to give the reciprocal of the equivalent capacitance. This simplifies the analysis of complex circuits by reducing them to a single, manageable capacitance.

Capacitor Networks

This concept involves analyzing circuits that include multiple capacitors connected in various configurations. It requires understanding how the topology of connections (whether series, parallel, or a combination) influences the overall behavior, including charge distribution, voltage drops, and the effective (equivalent) capacitance of the network.

Series and Parallel Capacitor Configurations

Identifying whether capacitors are in series or parallel is crucial because it determines how charge and voltage are distributed across them. In series circuits, the same charge passes through each capacitor while the total voltage divides among them. In parallel circuits, the voltage across each capacitor is the same while the total charge is the sum of the individual charges stored on each capacitor.
