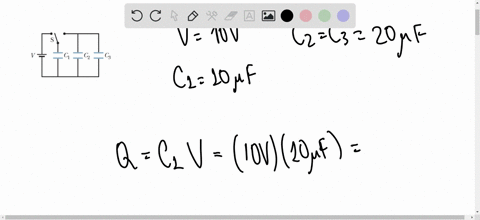

In Fig.25-37 V= 10 V, C1=10 μF, and C2=C3=20 μF . Switch S is first thrown to the left side unti

step 1 All right, so for this problem, we have the circuit and we have a switch here, S. We are missing

In Fig.25-37 V= 10 V, C1=10 μF, and C2=C3=20 μF . Switch S...

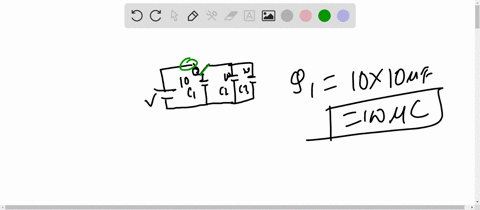

In Fig.$25-37 $V= $10 \mathrm{V}, C_{1}$$=10$ $\mu \mathrm{F},$ and $C_{2}=C_{3}=20 \mu \mathrm{F}$ . Switch $\mathrm{S}$ is first thrown to the left side until capacitor 1 reaches equilibrium. Then the switch is thrown to the right. When equilibrium is again reached, how much charge is on capacitor 1$?$

Key Concepts

Switching Operations in Circuits

Switching operations involve changing the circuit connections, which can lead to transient responses before a new equilibrium is achieved. Understanding the impact of such operations is crucial in predicting how the charge and voltage distribute themselves across the circuit elements in response to changes in the circuit configuration.

Charge Redistribution and Conservation

When the configuration of a capacitor network is changed, the charge on the capacitors redistributes to maintain equilibrium while conserving the total charge. This principle is fundamental in analyzing circuits where switches alter the circuit topology, allowing the system to reach a new equilibrium state.

Equilibrium in Capacitor Circuits

Equilibrium in capacitor circuits is reached when all transient processes have ceased, and the voltages across the capacitors settle to constant values. Analyzing the equilibrium conditions helps in determining the final voltage and charge distribution across each capacitor after any switching operation.

Capacitance

Capacitance is a measure of a capacitor’s ability to store charge per unit voltage. It is a fundamental property of capacitors and plays a critical role in determining how much energy can be stored in an electrical field for a given applied voltage.

Capacitor Networks

Capacitor networks involve the interconnection of capacitors in various configurations such as series and parallel combinations. Understanding these configurations is essential as they determine the overall equivalent capacitance, voltage distribution, and stored charge in the circuit.

Transcript
