In Figure P20.40, the change in internal energy of a gas...

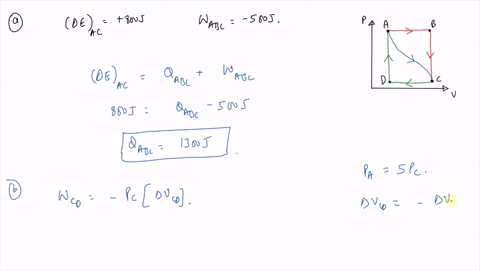

In Figure P20.40, the change in internal energy of a gas that is taken from $A$ to $C$ is $+800 \mathrm{~J}$. The work done along the path $A B C$ is $+500 \mathrm{~J}$. (a) How much energy must be added to the system by heat as it goes from $A$ through $B$ and on to $C ?(b)$ If the pressure at point $A$ is five times that at point $C$, what is the work done by the system in going from $C$ to $D ?$ (c) What is the energy exchanged with the surroundings by heat as the gas is taken from $C$ to $A$ along the green path? (d) If the change in internal energy in going from point $D$ to point $A$ is $+500 \mathrm{~J}$, how much energy must be added to the system by heat as it goes from point $C$ to point $D$ ?

Key Concepts

Pressure-Volume Work

Pressure-volume work is a specific form of work done when the pressure of a system causes it to expand or compress against an external pressure. It is calculated as the area under the pressure-volume curve and is crucial when determining the work component in various thermodynamic processes involving gases, especially in processes where pressure differences are significant.

Path Dependence

Path dependence refers to the concept that certain quantities in thermodynamics, such as work and heat, depend on the specific process history or path taken between two states. This contrasts with state functions like internal energy, which depend solely on the state of the system. Understanding path dependence is critical when analyzing complex thermodynamic cycles.

Heat Transfer

Heat transfer is the mechanism by which energy is exchanged between a system and its surroundings due to a temperature difference. Like work, heat transfer is also path dependent, and it plays a key role in altering the internal energy of the system according to the First Law of Thermodynamics.

First Law of Thermodynamics

The First Law of Thermodynamics is a statement of energy conservation, relating the change in internal energy of a system to the net heat added and the net work done by the system. It provides the fundamental equation ?U = Q - W, where ?U is the change in internal energy, Q is the heat added to the system, and W is the work performed by the system, highlighting how energy is transferred within the system.

Internal Energy

Internal energy is the sum of all the microscopic forms of energy within a thermodynamic system, including kinetic and potential energy at the molecular level. It is a state function, meaning its value depends only on the current state of the system and not on the path taken to reach that state, making it a crucial concept when analyzing energy changes in processes.

Work in Thermodynamics

Work in thermodynamics is the energy transferred by a system due to a force acting through a displacement, particularly when a system undergoes expansion or compression. It is a path-dependent quantity, meaning the amount of work done depends on the specific process path taken, and it follows certain sign conventions regarding whether work is done on or by the system.
