Question

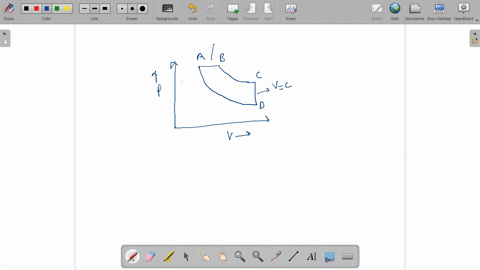

In $\mathrm{P} \rightarrow \mathrm{V}$ diagram given below, the isochoric, isothermal and isobaric path respectively are(A) $\mathrm{BA}, \mathrm{AD}, \mathrm{DC}$(B) $\mathrm{DC}, \mathrm{CB}, \mathrm{BA}$(C) $A B B C=C D$(D) CA $D A A B$
Step 1
In an isobaric process, the pressure remains constant. From the given diagram, we can see that the path AB is isobaric because the pressure is constant along this path. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In pressure-volume diagram given below, the isochoric, isothermal, and isobaric parts respectively, are: (a) $\mathrm{BA}, \mathrm{AD}, \mathrm{DC}$ (b) DC, CB, BA (c) $\mathrm{AB}, \mathrm{BC}, \mathrm{CD}$ (d) $\mathrm{CD}, \mathrm{DA}, \mathrm{AB}$
THERMODYNAMICS
Thermodynamics
Figure shows four $p-V$ diagrams. Which of these curves represent isothermal and adiabatic process? (a) $D$ and $C$ (b) $A$ and $C \quad$ (c) $A$ and $B$ (d) $B$ and $D$
Round 1
Figure shows four $\mathrm{P} \rightarrow \mathrm{V}$ diagrams. Which of these curves represent. Isothermal and adiabatic processes? (A) $\mathrm{A}$ and $\mathrm{C}$ (B) $\mathrm{A}$ and $\mathrm{B}$ (C) $\mathrm{C}$ and $\mathrm{D}$ (D) B and D
