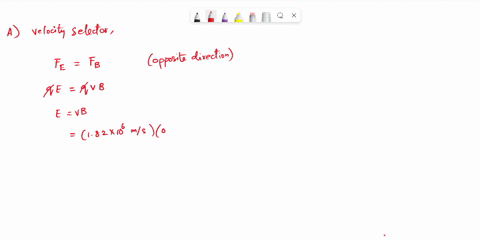

In the Bainbridge mass spectrometer (see Fig. 27.24 ), the magnetic-field magnitude in the velocity selector is $0.650 \mathrm{T},$ and ions having a speed of $1.82 \times 10^{6} \mathrm{m} / \mathrm{s}$ pass through undeflected. (a) What is the electric-field magnitude in the velocity selector? (b) If the separation of the plates is $5.20 \mathrm{mm},$ what is the potential difference between plates $P$ and $P^{\prime} ?$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Lorentz Force

The Lorentz force is the combined force experienced by a charged particle moving through electric and magnetic fields, given by F = q(E + v × B). In contexts like the velocity selector, the condition that the net force is zero (qE = qvB) allows for precise selection of velocities, making the Lorentz force concept fundamental to the operation of devices in mass spectrometry.

Velocity Selector

A velocity selector is a device that employs mutually perpendicular electric and magnetic fields to allow only particles with a specific velocity to pass through undeflected. This happens when the electric force (qE) exactly cancels the magnetic force (qvB), leading to the condition v = E/B, which serves as the fundamental principle for filtering charged particles by speed.

Electric Field and Potential Difference

In a uniform electric field, the potential difference between two points is directly related to the field strength and the distance between those points by the relation ?V = E · d. This relationship is crucial in determining the voltage applied across components such as the plates in a velocity selector or similar devices.
