Question

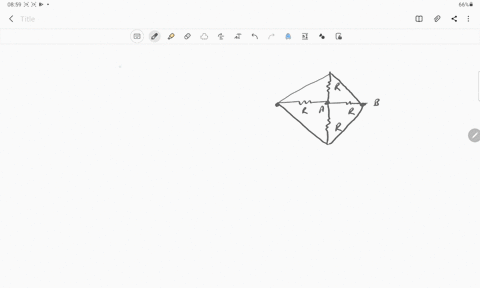

In the circuit shown in fig, the effective resistance between $\mathrm{A}$ and $\mathrm{B}$ is....(A) $R / 2$(B) $\mathrm{R}$(C) $2 \mathrm{R}$(D) $4 \mathrm{R}$
Step 1
We have three resistors of resistance $R$ and two resistors of resistance $R/3$. Show more…
