In the circuit shown in the figure, R1=10.0 Ω, R2=4.00 Ω, and R3=10.0 Ω, and the capacitor has c

step 1 Hi, in the given problem there are three resistors joined in a circuit along with a single capac

In the circuit shown in the figure, R1=10.0 Ω, R2=4.00 Ω,...

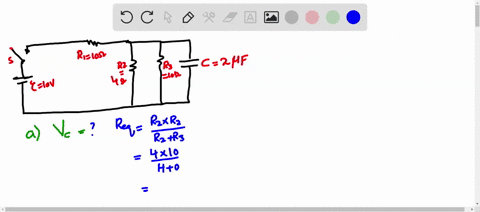

In the circuit shown in the figure, $R_{1}=10.0 \Omega, R_{2}=4.00 \Omega$, and $R_{3}=10.0 \Omega$, and the capacitor has capacitance $C=2.00 \mu \mathrm{F}$. a) Determine the potential difference, $\Delta V_{\mathrm{C}}$, across the capacitor after switch S has been closed for a long time. b) Determine the energy stored in the capacitor when switch S has been closed for a long time. c) After switch S is opened, how much energy is dissipated through $R_{3}$ ?

In the circuit shown in the figure, $R_{1}=10.0 \Omega, R_{2}=4.00 \Omega$, and $R_{3}=10.0 \Omega$, and the capacitor has capacitance $C=2.00 \mu \mathrm{F}$.
a) Determine the potential difference, $\Delta V_{\mathrm{C}}$, across the capacitor after switch S has been closed for a long time.
b) Determine the energy stored in the capacitor when switch S has been closed for a long time.
c) After switch S is opened, how much energy is dissipated through $R_{3}$ ?

Key Concepts

Energy Dissipation in Resistors

When a charged capacitor is discharged through a resistor, the stored energy is converted into thermal energy (heat) within that resistor. The amount of energy dissipated in the resistor during the discharge process is equal to the change in the stored energy of the capacitor. Understanding this concept is crucial for analyzing energy loss in circuits and the resulting thermal effects.

Energy Stored in a Capacitor

The energy stored in a capacitor is given by the equation U = 1/2 C V², where C is the capacitance and V is the voltage across the capacitor. This formula quantifies how much energy is held in the capacitor's electric field when it is charged, and it plays a critical role in understanding energy storage and release in electrical circuits.

DC Steady State in Capacitive Circuits

In a DC circuit, after a long time has passed, a capacitor becomes fully charged and behaves like an open circuit. This means that no steady-state current flows through the capacitor. Analyzing the circuit under these conditions allows us to simplify the circuit by ignoring the current through the capacitor and focusing on the potential differences dictated by the surrounding resistive network.

Voltage Divider Rule

The voltage divider rule is a fundamental tool in circuit analysis that allows us to determine the voltage across a particular component in a series connection. By proportionally assigning the total voltage across the resistors based on their resistance values, this rule helps calculate the potential difference across a specific resistor (or combination of resistors) in the network.
