In the figure shown, all four charges (+Q, +Q, –q, and –q) are situated at the corners of a squa

In the figure shown, all four charges (+Q, +Q, –q, and

Key Concepts

Electric Field of Point Charges

The electric field of a point charge represents the force a unit positive test charge would experience in the vicinity of that point charge. Calculating the net electric field involves summing the contributions from all point charges, taking into account both the magnitude and direction of the individual fields, which is critical in predicting the behavior of test charges in the field.

Vector Addition

Vector Addition is a key concept in determining the net force or electric field when multiple charges are involved. Each force or electric field contribution has both magnitude and direction, and the total effect is obtained by adding all the vectors using appropriate methods, such as component analysis or graphical techniques.

Symmetry in Charge Configurations

Symmetry in charge configurations simplifies the analysis of electric forces and fields by allowing one to predict the cancellation or reinforcement of vector components. In symmetric arrangements, like charges placed at the corners of a square, symmetry arguments can often be used to quickly deduce that certain components of the force or field cancel out, thereby simplifying the calculations.

Superposition Principle

The Superposition Principle states that the net force or electric field due to multiple charges is the vector sum of the forces or fields due to each individual charge. This principle allows for the separate calculation of contributions from each charge, which can then be added together to find the total force or electric field acting at a point.

Coulomb's Law

Coulomb's Law explains how the electric force between two point charges is directly proportional to the product of the magnitudes of the charges and inversely proportional to the square of the distance between them. It forms the basis for calculating the forces acting on each charge in any configuration and is essential for understanding the interactions between charges in electrostatic problems.

Transcript

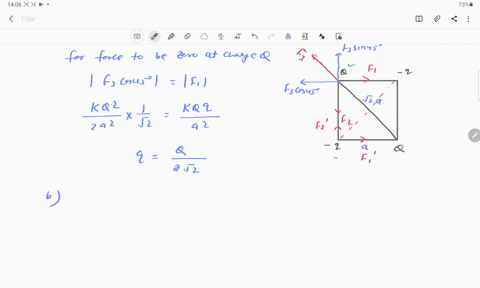

00:01 So in this problem, we have four charges, positive, negative, negative, and positive, right? so this is a positive q, this is negative q, negative q, and a positive q.

00:16 So according to the problem, we know that the net force acting on the positive q is zero.

00:22 So in parley, i want to find a relation of the small q and the capital q.

00:28 If we do the force analysis on this charge, you see that we have the 3rd.

00:34 Attractive force toward this direction, and attractive force toward this direction, and the repulsive force toward this direction, right? and it is equilibrium in the three forces.

00:49 So the force induced by, the two attractive force has magnitude, one over square, one over four pi epsilon naught, times q, q over.

01:01 So suppose the separation of them is d.

01:05 Over d squared.

01:07 And the combination of these two forces will be toward this direction.

01:13 And this is the combined force.

01:16 And the magnitude of this force equal this one times square of 2.

01:24 So because this charge is in equilibrium, so the magnitude of this force will be equal to the repulsive force, right? so this equal 1 or 4 pi epsilon 0 times q squared over so the separation between two positive charges are square 2 times d.

01:45 All right.

01:46 So squared.

01:48 So we have this equation now, right? so you can solve this equation to obtain that the small q equal negative q over, i'm sorry, small q is positive here.

02:03 This is a positive because we already move this negative sign in front of small q.

02:07 So it's q over square two, square two...
