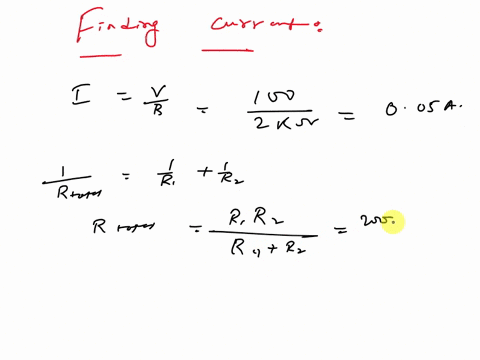

In the physics laboratory, Oscar measured the resistance between his hands to be $2.0 \mathrm{k} \Omega .$ Being curious by nature, he then took hold of two conducting wires that were connected to the terminals of an emf with a terminal voltage of $100.0 \mathrm{V} .$ (a) What current passes through Oscar? (b) If one of the conducting wires is grounded and the other has an alternative path to ground through a $15 \Omega$ resistor (so that Oscar and the resistor are in parallel), how much current would pass through Oscar if the maximum current that can be drawn from the emf is $1.00 \mathrm{A} ?$

In the physics laboratory, Oscar measured the resistance between his hands to be $2.0 \mathrm{k} \Omega .$ Being curious by nature, he then took hold of two conducting wires that were connected to the terminals of an emf
with a terminal voltage of $100.0 \mathrm{V} .$ (a) What current passes through Oscar?
(b) If one of the conducting wires is grounded and the other has an alternative path to ground through a $15 \Omega$ resistor (so that Oscar and the resistor are in parallel), how much current would pass through Oscar if the maximum current that can be drawn from the emf is $1.00 \mathrm{A} ?$

Key Concepts

Resistance

Resistance is a measure of how much an object or material opposes the flow of electric current. In electrical circuits, understanding resistance is fundamental because it determines how much current will flow for a given applied voltage, as described by Ohm's law. Resistance is typically measured in ohms (?) and is a key parameter for analyzing both simple and complex circuits.

Ohm’s Law

Ohm’s law is a basic principle in electronics that states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. This relationship, expressed as I = V/R, allows calculation of one of the three parameters (current, voltage, or resistance) when the other two are known.

Parallel Circuits

A parallel circuit is one where components are connected along multiple paths, so the same voltage is present across each branch. In these circuits, the overall resistance is lower than any of the individual resistances because the current has multiple paths to take. This concept is crucial when analyzing how current divides between different branches, such as a human body and an additional resistor, in a circuit.

Terminal Voltage and Maximum Current Limits

Terminal voltage refers to the voltage output of a power source when it is connected to a circuit, taking into account any internal resistance. The maximum current limit of a power source represents the highest current that can be safely drawn from it. These factors are essential in circuit analysis because they govern how energy is delivered to and shared by the connected components, especially when multiple pathways are involved.
