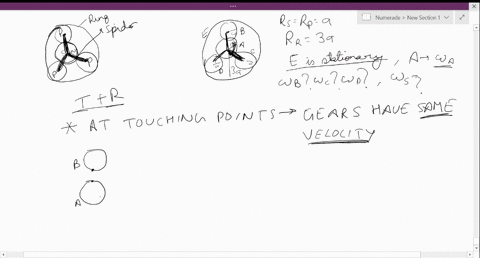

In the planetary gear system shown, the radius of gears $A, B, C,$ and $D$ is 3 in. and the radius of the outer gear $E$ is 9 in. Knowing that gear $A$ has a constant angular velocity of 150 rpm clockwise and that the outer gear $E$ is stationary, determine the magnitude of the acceleration of the tooth of gear $D$ that is in contact with (a) gear $A,(b)$ gear $E .$

In the planetary gear system shown, the radius of gears $A, B, C,$ and
$D$ is 3 in. and the radius of the outer gear $E$ is 9 in. Knowing that
gear $A$ has a constant angular velocity of 150 rpm clockwise and
that the outer gear $E$ is stationary, determine the magnitude of
the acceleration of the tooth of gear $D$ that is in contact with
(a) gear $A,(b)$ gear $E .$

Key Concepts

Planetary Gear Systems

A planetary gear system is an arrangement of gears consisting of a central sun gear, planet gears that rotate around the sun, and usually an outer ring gear that may be fixed or rotating. This configuration allows for multiple power transmission paths and variable gear ratios within a compact structure. The dynamics of such systems involve interactions between the rotating components, which share common contact points and mechanical constraints.

Gear Ratio

The gear ratio is the relationship between the sizes or numbers of teeth of meshing gears, and it determines how angular velocity is scaled from one gear to another. In systems where gears engage without slipping, the ratio of the radii (or number of teeth) of the gears directly influences their relative speeds and hence the motion of points on their perimeters.

Relative Motion Analysis

Relative motion analysis involves studying the movement of components in a mechanical system with respect to one another. In gear systems, this means understanding how the angular velocities of different gears relate at points of contact, taking into account constraints such as fixed or input gears. This analysis is crucial for determining the speed and acceleration of specific points on the gears.

Centripetal Acceleration

Centripetal acceleration is the inward acceleration experienced by any point moving in a circular path, calculated as the square of the angular velocity multiplied by the radius of rotation. Even when a body rotates at a constant speed, the change in direction of the velocity vector results in an acceleration that points toward the center of the circle.

Angular Kinematics

Angular kinematics describes the motion of rotating bodies in terms of angular displacement, angular velocity, and angular acceleration. It provides the framework for analyzing how rotational motion translates into the linear motion of points on a gear's rim, which is especially important in systems with gears where points of contact undergo complex movements.
