In1932, A. A. Levine and A. G. Cole studied the ozonolysis of o -xylene and isolated three produ

step 1 Solving problem 28 of chapter 15. So the ozonalysis of orthoxylene gives basically three product

In1932, A. A. Levine and A. G. Cole studied the ozonolysis...

Key Concepts

Product Distribution Analysis

Analyzing the ratio of products formed in a reaction can provide insights into the reactivity and structure of the starting material. When the distribution of ozonolysis products is not statistically equal, it suggests differences in reactivity at various sites within the molecule, indicating that the contributing resonance structures do not equally influence all reactive centers.

Molecular Symmetry and Structure Elucidation

Examining product ratios in structural reactions utilizes molecular symmetry and stereoelectronic effects. For aromatic compounds, deviations from expected symmetrical outcomes in product formation can reveal that the resonance hybrid does not represent an equal contribution of its limiting structures, thereby providing clues about the overall electronic and spatial organization of the molecule.

Resonance Hybrid

This concept involves representing a molecule as a blend of two or more contributing structures, which collectively describe the electron distribution more accurately than any single Lewis structure. In the context of aromatic compounds, the resonance hybrid accounts for delocalized electrons across the ring, affecting reactivity and the formation of reaction products.

Ozonolysis Reaction Mechanism

Ozonolysis is a chemical reaction where ozone cleaves carbon–carbon double bonds, breaking down the molecular structure into smaller fragments. In organic chemistry, understanding how the ozonolysis mechanism operates, and predicting its products, is essential in deducing the electronic and structural characteristics of the original compound.

Transcript

00:01 Solving problem 28 of chapter 15.

00:10 So the ozonalysis of orthoxylene gives basically three products.

00:19 Glyoxyl, 2 -3 butandidion and pyruvaldiid.

00:25 In what ratio would you expect the three products to be formed if the orthoxyline is a resonance hybrid of two structures? and also it is telling us that the actual ratio was found three parts glyxyl, one part two, three but one and two parts pyruvaldeite.

00:47 So we have an ozonealysis reaction that means that when we have a double bond, the double bond is going to be cleaved and an oxygen atom basically becomes doubly bonded to each of the original alkyn carbons.

01:17 That means if we apply alzonalysis in here, we are going to basically have.

01:31 So each carbon connected to the double bond is going to be bond to an oxygen through a double bond.

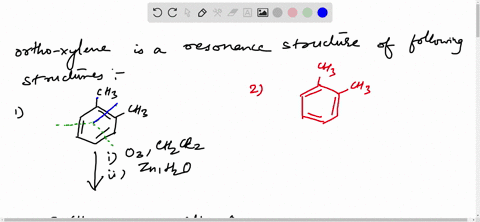

01:40 So let's start writing the formula of the ortho xylene.

01:45 We can have, for example, this one, ch3, ch3.

01:57 Now if we do an an xonalysis and then reaction with zinc.

02:04 So from this one we are going to have, for example, if we image to cleave this double bond, we will have on one side the two ch3, ch3, and ch3.

02:26 So each carbon part of the double bond, that means this one and this one, one will be connected to an oxygen through a double bond and to the other group that was already there.

02:41 Then if we think about to cleave this carbon, this double bond, sorry.

02:48 Then we will have c, c, c, c, bound, oxygen, c, double bond, h.

03:01 H.

03:03 Same thing for this one.

03:07 So we're going to have two of these, two of this and one of this.

03:13 Now we can write a different resonance structure for the same molecule.

03:22 So instead of having this double bond in here, we can, for example, put it in here.

03:27 The next one is going to be this one and this one.

03:30 And we position again the two metal.

03:37 Now if we do the other, zonolysis again.

03:41 So from this bond, now we don't have any more a ch3, ch3, but we have on one side, carbon and hydrogen connected to the carbon, so this one, this hydrogen in here, and then double bond oxygen, carbon, double bond, oxygen, and ch3 on the other side.

04:09 Okay...
