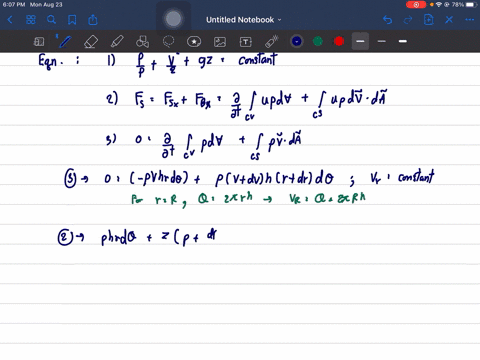

Incompressible fluid of negligible viscosity is pumped, at total volume flow rate $Q$, through a porous surface into the small gap between closely spaced parallel plates as shown. The fluid has only horizontal motion in the gap. Assume uniform flow across any vertical section. Obtain an expression for the pressure variation as a function of $x$. Hint Apply conservation of mass and the momentum equation to a differential control volume of thickness $d x,$ located at position $x$

Key Concepts

Conservation of Mass

This principle, often expressed as the continuity equation for an incompressible fluid, states that the rate at which mass enters a control volume must equal the rate at which it exits. It establishes a relationship between the velocity and the cross-sectional area of the flow, ensuring that the volumetric flow rate remains constant along the direction of motion.

Momentum Equation in Fluid Mechanics

The momentum equation, rooted in Newton's second law, relates the sum of forces acting on a fluid element to the rate of change of its momentum. In fluid flow analysis, it is used to derive expressions that connect the pressure gradient to changes in the fluid's velocity profile along the flow, especially when inertial effects are important.

Differential Control Volume Analysis

This technique involves analyzing an infinitesimally small segment of the fluid to derive differential equations. By applying conservation laws over a differential control volume, one can capture the local behavior of the fluid, such as variations in pressure or velocity, which can then be integrated to obtain the overall flow characteristics.

Pressure Gradient

The pressure gradient represents the rate of change of pressure with respect to spatial coordinates. It is fundamental in driving fluid flow, as differences in pressure provide the force needed to accelerate the fluid. In a controlled analysis, such as within a differential element, the pressure gradient is related to the net force acting on the fluid, helping to determine how pressure varies along the flow path.
