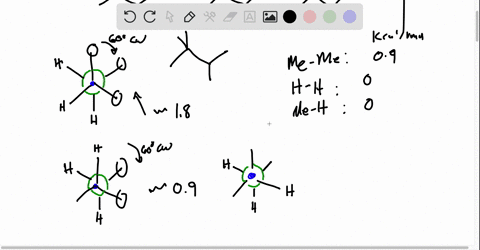

Increased substitution around a bond leads to increased strain. Take the four substituted butanes listed below, for example. For each compound, sight along the C2-C3 bond and draw Newman projections of the most stable and least stable conformations. Use the data in Table 3.5 to assign strain energy values to each conformation. Which of the eight conformations is most strained? Which is least strained? (a) 2-Methylbutane (b) 2,2-Dimethylbutane (c) 2,3 -Dimethylbutane (d) 2,2,3 -Trimethylbutane

Increased substitution around a bond leads to increased strain. Take the four substituted butanes listed below, for example. For each compound, sight along the C2-C3 bond and draw Newman projections of the most stable and least stable conformations. Use the data in Table 3.5 to assign strain energy values to each conformation. Which of the eight conformations is most strained? Which is least strained?
(a) 2-Methylbutane
(b) 2,2-Dimethylbutane
(c) 2,3 -Dimethylbutane
(d) 2,2,3 -Trimethylbutane

Key Concepts

Newman Projection

A Newman projection is a diagram used to visualize the spatial orientation of bonds around a single carbon–carbon bond. It allows chemists to compare different conformations by looking down the axis of the bond to assess how substituents are arranged, helping to evaluate steric interactions and torsional strain.

Conformational Analysis

Conformational analysis involves studying the different spatial arrangements of a molecule that result from the rotation about single bonds. This analysis helps in understanding energy differences between conformers, particularly how substituent interactions and torsional strain can affect molecular stability.

Torsional Strain

Torsional strain arises from the resistance to twisting around a bond due to electron repulsion between bonds or substituents in an eclipsed conformation. It becomes more significant when there are bulky groups, as the overlapping of electron clouds in staggered conformations is minimized.

Steric Hindrance

Steric hindrance refers to the repulsion and interference between atoms or groups due to their physical size. In conformational analysis, bulky substituents can lead to increased strain when they are forced into close proximity, greatly influencing the stability of different molecular conformations.

Substitution Effects on Strain Energy

The degree of substitution on a carbon–carbon bond significantly affects its strain energy. As the number and size of substituents increase, the resulting steric interactions can lead to higher strain energies due to greater steric hindrance, making certain conformations less stable.

Strain Energy

Strain energy is the additional energy stored in a molecule due to geometric distortions that deviate from ideal bond angles or distances. It encompasses contributions from torsional strain, steric strain, and angle strain, and is used to compare the relative stabilities of different conformations.
