Indicate the currents in all the branches using charge conservation as shown in the figure. Applying loop rule, $-\Delta \varphi=0$ in the loops $1 \mathrm{~A} 781,1 \mathrm{~B} 681$ and $\mathrm{B} 456 \mathrm{~B}$, respectively, we get $\xi_{0}=\left(i_{0}-i_{1}\right) R_{1}$ $i_{3} R_{3}+i_{1} R_{2}-\xi_{0}=0 \quad$ (2) and $\left(i_{1}-i_{3}\right) R-\xi-i_{3} R_{3}=0$ Solving Eqs. $(1),(2)$ and $(3)$, we get the sought current $\left(i_{1}-i_{3}\right)=\frac{\xi\left(R_{2}+R_{3}\right)+\xi_{0} R_{3}}{R\left(R_{2}+R_{3}\right)+R_{2} R_{3}}$

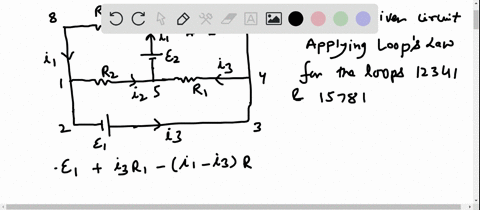

Indicate the currents in all the branches using charge conservation as shown in the figure. Applying loop rule, $-\Delta \varphi=0$ in the loops $1 \mathrm{~A} 781,1 \mathrm{~B} 681$ and $\mathrm{B} 456 \mathrm{~B}$, respectively, we get
$\xi_{0}=\left(i_{0}-i_{1}\right) R_{1}$
$i_{3} R_{3}+i_{1} R_{2}-\xi_{0}=0 \quad$ (2) and
$\left(i_{1}-i_{3}\right) R-\xi-i_{3} R_{3}=0$
Solving Eqs. $(1),(2)$ and $(3)$, we get the sought current $\left(i_{1}-i_{3}\right)=\frac{\xi\left(R_{2}+R_{3}\right)+\xi_{0} R_{3}}{R\left(R_{2}+R_{3}\right)+R_{2} R_{3}}$

Key Concepts

System of Equations in Circuit Analysis

In circuit analysis, combining Kirchhoff's Current and Voltage Laws produces a system of linear equations that model the behavior of currents and voltages in the circuit. Solving this system, often using techniques from linear algebra, allows one to find the unknown branch currents and verify that both energy and charge are conserved in the circuit.

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law states that at any junction in an electric circuit, the algebraic sum of currents entering and leaving the node is zero, reflecting the conservation of charge. This law is essential for analyzing circuits by ensuring that all currents are accounted for at each node, allowing the derivation of relationships between branch currents.

Kirchhoff's Voltage Law (KVL)

Kirchhoff's Voltage Law asserts that the sum of the electrical potential differences (voltage drops and gains) around any closed loop in a circuit must equal zero. This principle arises from energy conservation and is fundamental in analyzing voltage distributions across circuit elements, enabling the systematic application of loop rules.

Mesh (Loop) Analysis

Mesh analysis is a method used to determine currents in a planar circuit by defining independent loops and applying Kirchhoff's Voltage Law to each one. This technique simplifies the process of analyzing complex circuits by reducing them to a set of simultaneous equations based on the loops formed by circuit elements.

Ohm's Law

Ohm's Law, which states that the voltage across a resistor is directly proportional to the current flowing through it (V = IR), connects the electrical properties of resistance, current, and voltage. This law is a cornerstone of electrical circuit analysis, serving as the basis for calculating voltage drops in resistive elements when performing both mesh and nodal analyses.
