Indicate whether each of the following molecules is capable...

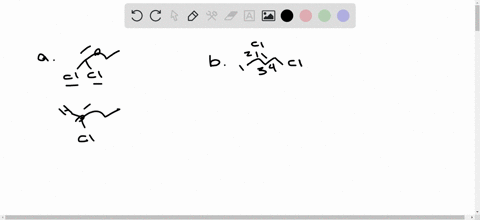

Indicate whether each of the following molecules is capable of geometrical (cis-trans) isomerism. For those that are, draw
the structures: (a) 1,1 -dichloro-1-butene, (b) 2,4 -dichloro-2butene, (c) 1,4 -dichlorobenzene, $($ d) 4,5 -dimethyl- 2 -pentyne.

Key Concepts

Stereochemistry of Alkynes

Alkynes feature a carbon–carbon triple bond with a linear geometry, meaning that the substituents around the triple bond are arranged in a straight line. This linear arrangement prevents the development of geometrical isomers (cis-trans isomerism) because there is no possibility for different spatial orientations as seen in alkenes.

Aromatic Substitution Patterns

In aromatic compounds, such as benzene derivatives, the idea of geometrical (cis-trans) isomerism does not generally apply due to the symmetric, planar structure and delocalized electrons of the aromatic ring. Instead, substitution patterns are described in terms of positional isomerism (e.g., ortho, meta, para), which involves different locations of substituents on the ring rather than distinct spatial arrangements around a double bond.

Geometrical Isomerism

Geometrical (cis-trans) isomerism occurs in molecules where rotation about a bond is restricted, typically at double bonds or within rings. For cis-trans isomerism to be possible, each of the two connected atoms (such as those in a carbon-carbon double bond) must have two different groups attached to them, allowing for distinct spatial arrangements relative to the double bond.

Stereochemistry of Alkenes

In alkenes, the restricted rotation about the carbon–carbon double bond is key to geometrical isomerism. The isomerism is observable only when each carbon of the double bond has two different substituents. This concept helps determine whether a particular alkene can exist as distinct cis and trans isomers depending on how the substituents are oriented with respect to each other.
