Indicate which diagram (1,2, or 3) represents the volume of the gas sample in a flexible conta

step 1 Okay, if we've got a gas in a flexible container and we increase its temperature, in order for t

Indicate which diagram (1,2, or 3) represents the volume...

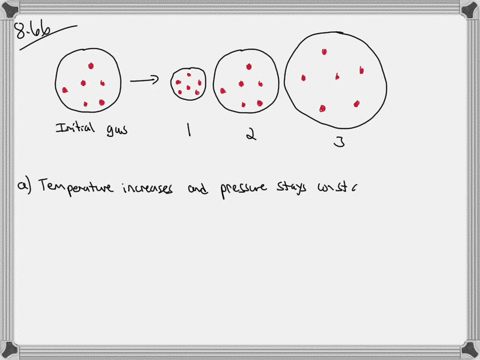

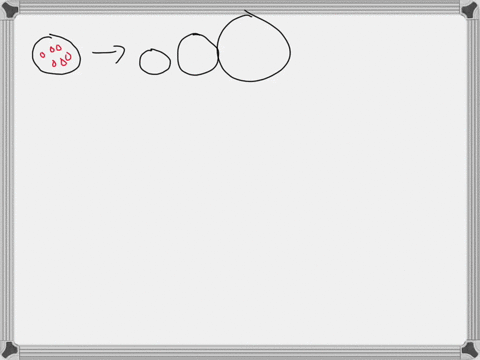

Indicate which diagram $(1,2, \text { or } 3)$ represents the volume of the gas sample in a flexible container when each of the following changes (a to e) takes place: (8.2,8.3,8.4) a. Temperature increases at constant pressure. b. Temperature decreases at constant pressure. c. Atmospheric pressure increases at constant temperature. d. Atmospheric pressure decreases at constant temperature. e. Doubling the atmospheric pressure and doubling the Kelvin temperature. (FIGURE CAN'T COPY)

Indicate which diagram $(1,2, \text { or } 3)$ represents the volume of the gas sample in a flexible container when each of the following changes (a to e) takes place: (8.2,8.3,8.4) a. Temperature increases at constant pressure.
b. Temperature decreases at constant pressure.
c. Atmospheric pressure increases at constant temperature.
d. Atmospheric pressure decreases at constant temperature.
e. Doubling the atmospheric pressure and doubling the Kelvin
temperature.
(FIGURE CAN'T COPY)

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Charles's Law

This law states that the volume of a gas is directly proportional to its absolute temperature when the pressure is held constant. It explains that if the temperature increases, the volume increases, and if the temperature decreases, the volume decreases, assuming the pressure and amount of gas remain constant.

Boyle's Law

Boyle's Law establishes that the volume of a fixed amount of gas is inversely proportional to its pressure at a constant temperature. In practical terms, if the atmospheric pressure increases, the gas volume decreases, and if the pressure decreases, the gas volume increases, while temperature remains unchanged.

Combined Gas Law

This law combines both Boyle's Law and Charles's Law to consider situations where both the pressure and temperature of a gas are altered simultaneously. It explains how the volume of a gas will adjust when both temperature and pressure change, maintaining the relationship among the three variables as long as the amount of gas remains constant.
