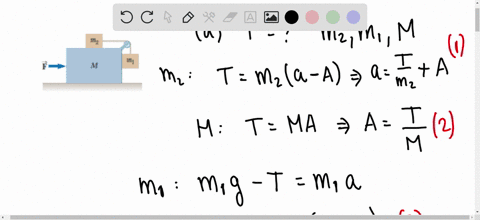

Initially the system of masses shown in Figure $\mathrm{P} 5.69$ is held motionless. All surfaces, pulley, and wheels are frictionless. Let the force $\mathbf{F}$ be zero and assume that $m_{2}$ can move only vertically. At the instant after the system of masses is released, find (a) the tension $T$ in the string, (b) the acceleration of $m_{2}$, (c) the acceleration of $M$, and (d) the acceleration of $m_{1} .$ (Note: The pulley accelerates along with the cart.)

Initially the system of masses shown in Figure $\mathrm{P} 5.69$ is held motionless. All surfaces, pulley, and wheels are frictionless. Let the force $\mathbf{F}$ be zero and assume that $m_{2}$ can move only vertically. At the instant after the system of masses is released, find (a) the tension $T$ in the string,
(b) the acceleration of $m_{2}$, (c) the acceleration of $M$, and (d) the acceleration of $m_{1} .$ (Note: The pulley accelerates along with the cart.)

Key Concepts

Newton's Second Law

Newton's Second Law, which states that the net force acting on a body is equal to the mass of the body multiplied by its acceleration (F = ma), is fundamental in analyzing the motion of each mass. This principle is used to set up equations that relate the forces (such as gravity, tension) acting on the masses to their resulting accelerations, and it serves as the basis for determining the system's dynamic behavior.

Tension in a String

Tension is the force transmitted through a string, rope, or cable when it is pulled tight by forces acting from opposite ends. In ideal scenarios with massless, inextensible strings and frictionless pulleys, the tension is the same throughout a continuous segment of string, and it plays a critical role in linking the acceleration of connected masses in a system.

Constraint Relationships

Constraint relationships refer to the kinematic restrictions that connect the motions of different parts of a system. In systems with inextensible strings and interconnected bodies (including movable pulleys), the accelerations and displacements of the masses are not independent but are related by the geometry and connectivity of the system. These relationships are used to relate the accelerations of the different masses involved.

Frictionless Systems

Assuming frictionless conditions is a common idealization in mechanics that simplifies the analysis by eliminating forces due to friction. In frictionless systems, surfaces, pulleys, and other contact interfaces do not dissipate energy, which means that only conservative forces (like gravity and tension) must be considered when applying Newton's laws to determine the motion.

Pulleys in Dynamics

Pulleys are used to change the direction of applied forces in a mechanical system, and when they are ideal (frictionless and massless), they do not alter the magnitude of the tension in the string. However, when a pulley itself is connected to a moving body, its acceleration must be taken into account in the overall dynamic analysis, leading to coupled equations of motion for the system.
