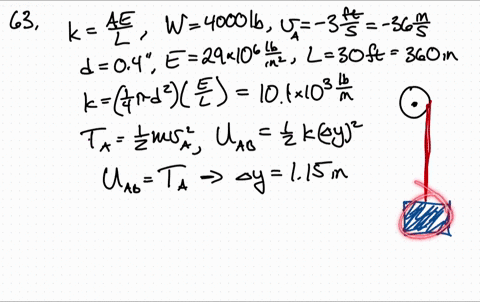

It is shown in mechanics of materials that the stiffness of an elastic cable is $k=A E / L,$ where $A$ is the cross-sectional area of the cable, $E$ is the modulus of elasticity, and $L$ is the length of the cable. A winch is lowering a $4000-$ lb piece of machinery using a constant speed of $3 \mathrm{ft} / \mathrm{s}$ when the winch suddenly stops. Knowing that the steel cable has a diameter of 0.4 in., $E=29 \times 10^{6} \mathrm{lb} \sqrt{\mathrm{in}}^{2},$ and when the winch stops $L=30 \mathrm{ft},$ determine the maximum downward displacement of the piece of machinery from the point it was when the winch stopped.

Key Concepts

Elastic Stiffness

Elastic stiffness is a measure of a material or structural member’s resistance to deformation when a load is applied. It is typically defined as the force required per unit deformation, and for elements such as cables or rods its value depends on the geometry (such as cross?sectional area and length) as well as the material’s inherent properties, such as the modulus of elasticity. This concept is central in mechanics of materials because it links material behavior to structural performance.

Modulus of Elasticity

The modulus of elasticity, often referred to as Young’s modulus, is a measure of a material’s ability to resist deformation under load. It quantifies the stiffness of the material itself, indicating how much it will elongate or compress under a given stress. This property is vital in predicting how structures will respond when forces are applied, and it directly influences the stiffness of elastic components.

Static versus Dynamic Response

Understanding static versus dynamic response involves distinguishing between the equilibrium deformation under a constant load (static conditions) and the additional deformations or oscillatory motion that occur when the load changes suddenly (dynamic conditions). In static equilibrium, forces balance so that deformation is constant; in dynamic scenarios, however, inertia and energy conservation lead to overshoots or oscillations about the equilibrium position.

Simple Harmonic Motion in Mass-Spring Systems

Simple harmonic motion describes the oscillatory behavior of a mass attached to an elastic element, such as a spring or an elastic cable, when it is displaced from its equilibrium position. The natural frequency of these oscillations is determined by the stiffness and the mass, and the initial conditions, such as an initial velocity, dictate the amplitude of the resulting motion. This framework is used to analyze transient responses in elastic systems.

Energy Conservation in Oscillatory Systems

The principle of conservation of energy in oscillatory systems states that the kinetic energy of a moving mass is converted into elastic potential energy as the system deforms, and vice versa. This conversion enables the determination of maximum displacements or amplitudes when a dynamic load is applied suddenly. By equating kinetic energy and the additional stored elastic energy, one can predict how far a system will move beyond its static equilibrium configuration.
