Laser light of wavelength 510 nm is traveling in air and shines the at normal incidence onto the

step 1 This is chapter 35 problem number 48. We have air, a coating, coating, and a plastic rod. So we

Laser light of wavelength 510 nm is traveling in air and...

Laser light of wavelength $510 \mathrm{nm}$ is traveling in air and shines the at normal incidence onto the flat end of a transparent plastic rod that has $n=1.30 .$ The end of the rod has a thin coating of a transparent material that has refractive index $1.65 .$ What is the minimum (nonzero) thickness of the coating (a) for which there is maximum transmission of the light into the rod; (b) for which transmission into the rod is minimized?

Key Concepts

Anti-Reflective Coating Design

Anti-reflective coatings utilize the principles of thin film interference to reduce unwanted reflections. By choosing an appropriate thickness and refractive index for the coating, one can create destructive interference for reflected light at a specific wavelength, thereby maximizing transmission into the underlying medium. This concept is central to the design of optical devices and systems, ensuring efficient light coupling into materials.

Thin Film Interference

Thin film interference occurs when light reflects off the top and bottom surfaces of a thin layer, causing the reflected waves to interfere with each other. The resulting interference—constructive or destructive—depends on the optical path difference between the reflected rays and any phase shifts incurred at the boundaries. This principle is widely used in designing coatings that control the reflection and transmission of light.

Phase Change Upon Reflection

When light reflects off an interface between media with different refractive indices, a phase change may occur. Specifically, if light reflects from a medium of lower refractive index to a medium of higher refractive index, it undergoes a phase shift of ? (half a wavelength). This phase change is a critical factor in determining the interference condition (constructive or destructive) for the reflected light in thin film systems.

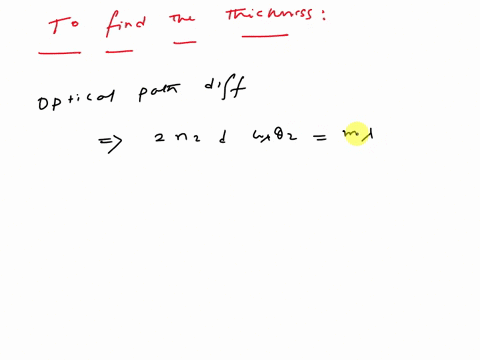

Optical Path Length

The optical path length is defined as the product of the physical thickness of a medium and its refractive index. It represents the effective distance light travels in the medium and is used to calculate the phase difference between waves traversing different paths. This concept is essential for determining the conditions under which the interference of light waves becomes constructive or destructive.

Interference Conditions in Thin Films

The condition for constructive or destructive interference in thin films is determined by the effective phase difference between the light waves reflecting from the various interfaces, including any phase changes due to reflection. For maximum transmission (minimal reflection), the thickness of the coating is typically chosen so that the reflected waves interfere destructively, whereas for minimized transmission (enhanced reflection), the coating is designed such that the reflected waves interfere constructively. These design criteria directly rely on balancing the phase contributions from optical path differences and phase shifts at interfaces.
