* " Lecturing on a beam A 70 -kg professor sits on a 20-kg beam while lecturing (Figure P 7.66 )

step 1 So it's shown that a professor is sitting on a 20 -kilogram beam while lecturing. A rope is atta

* " Lecturing on a beam A 70 -kg professor sits on a 20-kg...

$*$ " Lecturing on a beam A 70 -kg professor sits on a $20-\mathrm{kg}$ beam while lecturing (Figure $P 7.66 ) .$ A rope attached to the end of the beam passes over a pulley and down to a harness that wraps around the professor (the professor is supported partly by the beam and partly by the harness). The professor sits in the middle of the beam. Determine the force that the rope exerts on the harness and professor and the force that the beam exerts on the professor.

Key Concepts

Reaction Forces and Supports

Reaction forces are the forces exerted by supports, connections, or surfaces in response to applied loads. They play a crucial role in maintaining equilibrium in static systems by counteracting other forces, ensuring that the net force is zero.

Free-Body Diagrams

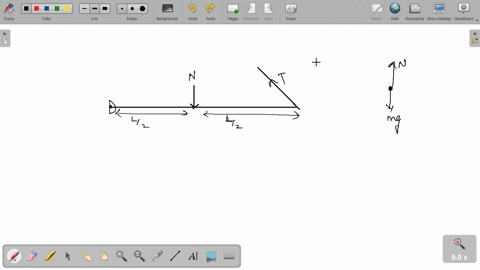

A free-body diagram is a schematic representation that isolates a body and depicts all external forces and torques acting on it. This tool is fundamental in mechanics as it allows one to systematically apply the principles of static equilibrium to determine unknown forces or moments.

Tension in Ropes and Cables

Tension is the force transmitted through a rope, cable, or string when it is pulled tight. In ideal cases with massless, inextensible ropes and frictionless pulleys, the tension is uniform throughout the rope. This concept is crucial for analyzing systems where a load is supported or transmitted by a rope.

Center of Mass

The center of mass is the point where the total mass of an object can be considered to be concentrated, simplifying the analysis of weight distribution. For extended bodies, using the center of mass enables one to treat the weight as if it were applied at a single point, which is critical when determining the effects of gravity in static equilibrium problems.

Torque and Rotational Equilibrium

Torque refers to the effectiveness of a force to produce rotation about a pivot or axis. In problems involving beams or levers, it is important to calculate the torque by multiplying the force by its perpendicular distance from the pivot point. Rotational equilibrium is achieved when the sum of all torques that cause clockwise rotation equals the sum of those that cause counterclockwise rotation.

Static Equilibrium

Static equilibrium is the state in which an object is at rest, meaning that the net force and net torque acting on it are zero. This principle is essential in mechanics to analyze systems where all forces and moments balance, ensuring that the object does not translate or rotate.
