Lines r and s are cut by transversal t. Which angle a) comesponds to ∠1 ? b) is the alternate in

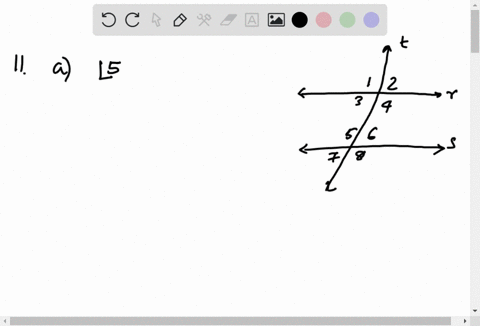

step 1 Question number 11, the two line are an S. This is a parallel to each other. The line T is trans

Lines r and s are cut by transversal t. Which angle a)...

Lines $r$ and $s$ are cut by transversal $t$. Which angle a) comesponds to $\angle 1 ?$ b) is the alternate interior $\angle$ for $\angle 4 ?$ c) is the alternate exterior $\angle$ for $\angle 1 ?$ d) is the other interior angle on the same side of transversal $t$ as $\angle 3 ?$ (FIGURE CAN'T COPY)

Lines $r$ and $s$ are cut by transversal $t$. Which angle
a) comesponds to $\angle 1 ?$
b) is the alternate interior $\angle$ for $\angle 4 ?$
c) is the alternate exterior $\angle$ for $\angle 1 ?$
d) is the other interior angle on the same side of transversal $t$ as $\angle 3 ?$
(FIGURE CAN'T COPY)

Key Concepts

Alternate Exterior Angles

Alternate exterior angles lie outside the parallel lines, on opposite sides of the transversal. Similar to alternate interior angles, when the lines are parallel, alternate exterior angles are also congruent, making them useful in solving geometric problems.

Consecutive Interior Angles

Also known as same-side interior angles, these angles are located inside the parallel lines on the same side of the transversal. For parallel lines, consecutive interior angles are supplementary, meaning their measures add up to 180 degrees.

Corresponding Angles

Corresponding angles are pairs of angles that occupy the same relative positions at the intersection points of a transversal with two lines. When the lines are parallel, these angles are congruent, meaning they have the same measure.

Parallel Lines

Parallel lines are lines in the same plane that never meet; they remain the same distance apart. When a transversal cuts through them, it creates several predictable angle relationships that are foundational in geometry.

Transversal

A transversal is a line that intersects two or more other lines at different points. In the context of parallel lines, a transversal produces corresponding angles, alternate interior angles, alternate exterior angles, and consecutive interior angles, all of which have specific congruency or supplementary properties.

Alternate Interior Angles

Alternate interior angles are located between the two lines on opposite sides of the transversal. When the lines intersected are parallel, these angles are congruent. Their equality is a key property used to prove parallelism and solve for unknown angle measures.
