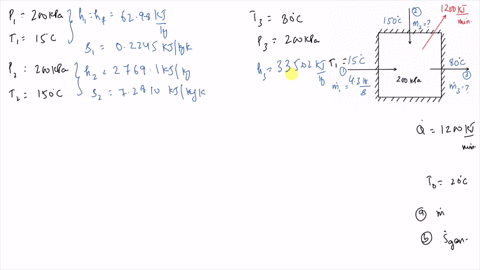

Liquid water at $200 \mathrm{kPa}$ and $15^{\circ} \mathrm{C}$ is heated in a chamber by mixing it with superheated steam at $200 \mathrm{kPa}$ and $200^{\circ} \mathrm{C}$. Liquid water enters the mixing chamber at a rate of $4 \mathrm{~kg} / \mathrm{s},$ and the chamber is estimated to lose heat to the surrounding air at $25^{\circ} \mathrm{C}$ at a rate of $600 \mathrm{~kJ} / \mathrm{min}$. If the mixture leaves the mixing chamber at $200 \mathrm{kPa}$ and $80^{\circ} \mathrm{C}$, determine $(a)$ the mass flow rate of the superheated steam and $(b)$ the wasted work potential during this mixing process.

Key Concepts

Thermodynamic Properties of Water and Steam

A working understanding of the specific properties of water and steam, such as specific enthalpy, temperature, and pressure relationships (including distinctions between superheated steam and saturated liquid states), is essential. These properties are used to calculate energy contributions from each stream in a mixing process and to ensure that energy balances are correctly formulated. Accurate property data are crucial for both the energy analysis and for determining the state and quality of the mixture.

Exergy Analysis

Exergy analysis deals with the quality of energy and quantifies the maximum useful work potential that can be extracted as a system comes into equilibrium with its environment. In mixing processes, stored or potential work that is lost due to irreversibilities (for instance, heat loss) is identified as wasted work potential. This concept is important from the second law of thermodynamics perspective, as it helps in evaluating the efficiency and assessing losses in the process.

Control Volume Analysis

This concept involves analyzing a specified region in space (the control volume) where mass and energy can cross the boundaries. In mixing problems, the steady-flow energy and mass balance equations are applied to the control volume, accounting for work, heat transfer, and any changes in the properties of the working fluids. It is fundamental for solving problems involving the mixing of streams, such as determining unknown flow rates or energy transfers.

Conservation of Energy

At the heart of thermal mixing processes is the principle that energy is conserved. This means that the total energy input into the system (including the enthalpy from streams and any heat transfers) must equal the total energy output. By setting up an energy balance, the unknown quantities—such as the mass flow rate of a superheated stream—can be determined. This concept draws from the first law of thermodynamics and is critical in designing and analyzing thermal systems.
