Make a graph of potential energy versus angle of bond rotation for propane, and assign values to

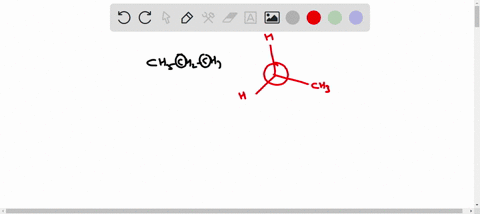

step 1 Hi guys, let's solve problem 3 .15. We need to draw the graph of potential energy versus angle o

Make a graph of potential energy versus angle of bond...

Key Concepts

Potential Energy Diagram

A potential energy diagram is a graphical representation that plots the energy of a molecule as a function of a reaction coordinate. In the context of bond rotation, this diagram displays how the energy varies as the molecule rotates around a bond, highlighting the positions of energy minima and maxima. This helps in visualizing the stability of different molecular conformations and the energetic cost associated with moving between them.

Bond Rotation

Bond rotation refers to the internal rotation around a sigma bond in a molecule. It is a fundamental motion in molecules that leads to the formation of different conformers. The energy associated with these rotations changes due to interactions such as steric hindrance and torsional strain, which can result in various degrees of stability for the conformers.

Torsional Strain

Torsional strain is the resistance encountered when bonds in a molecule twist relative to each other. This strain primarily arises when electron clouds in overlapping orbitals experience repulsion, particularly in eclipsed conformations where substituents directly align with one another. The presence of torsional strain creates energy barriers that are seen as the maxima in a potential energy versus bond rotation graph.

Conformational Analysis

Conformational analysis is the study of the different spatial arrangements of atoms in a molecule that result from rotation about single bonds. By examining the potential energy associated with these conformations, chemists can determine the most stable structures and understand the energy barriers that separate them. This analysis is essential for predicting molecular behavior and reactivity.

Energy Barriers

Energy barriers represent the maxima in a potential energy curve associated with bond rotation. These peaks indicate the conformations with the highest energy, usually due to increased steric interactions or torsional strain. Overcoming these energy barriers is necessary for a molecule to interconvert between different conformers, an important factor in understanding reaction mechanisms and molecular dynamics.
