Match the following properties of telescopes (lettered) with...

Match the following properties of telescopes (lettered) with their corresponding definitions (numbered). a. aperture b. resolution c. focal length d. chromatic aberration e. diffraction f. interferometer g. adaptive optics (1) two or more telescopes connected to act as one (2) distance from lens to focal plane (3) diameter (4) ability to distinguish close objects (5) computer-controlled atmospheric distortion correction (6) color-separating effect (7) smearing effect due to sharp edge

Match the following properties of telescopes (lettered) with their corresponding definitions (numbered).
a. aperture
b. resolution
c. focal length
d. chromatic aberration
e. diffraction
f. interferometer
g. adaptive optics
(1) two or more telescopes connected
to act as one
(2) distance from lens to focal plane
(3) diameter
(4) ability to distinguish close objects
(5) computer-controlled atmospheric distortion correction
(6) color-separating effect
(7) smearing effect due to sharp edge

Key Concepts

Adaptive Optics

Adaptive optics is a technology used to correct distortions in a telescope's images caused by atmospheric turbulence. By using computer-controlled deformable mirrors, adaptive optics systems can adjust in real time to produce clearer and sharper images.

Interferometer

An interferometer is a system that combines light from two or more telescopes to act as a single, larger aperture. This technique enhances the resolution by effectively increasing the baseline, allowing for more detailed observations than individual telescopes could achieve alone.

Diffraction

Diffraction is the bending and spreading of light waves when they encounter an obstacle or pass through a narrow aperture. It imposes a fundamental limit on the resolution of telescopes, meaning that even with perfect optics, there is a smallest angular separation that can be distinguished.

Aperture

Aperture refers to the diameter of a telescope's primary lens or mirror and is critical because it determines the amount of light that the telescope can collect. A larger aperture generally allows for fainter objects to be observed and improves the overall brightness and clarity of the images.

Focal Length

Focal length is the distance from the primary optical element (lens or mirror) to the focal plane where the image is formed. It affects the magnification and field of view of the telescope, influencing how objects are represented in the image.

Resolution

Resolution is the ability of a telescope to distinguish between two closely spaced objects. This property defines how detailed the observed images can be, as higher resolution minimizes blurring and results in sharper images.

Chromatic Aberration

Chromatic aberration is an imperfection in an optical system where different wavelengths of light are focused at different distances. This results in color fringes and a reduction in image quality, particularly in lenses that do not adequately correct for this dispersion.

Transcript

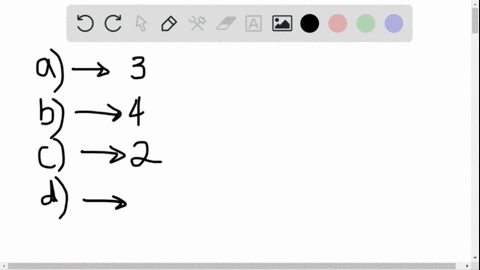

00:01 Okay, in this problem we're given a matching section.

00:02 We're asked to match a, aperture, b, resolution, c, focal length, d, chromatic aberration, e diffraction, f interferometer, and g, adaptive optics with their respective definitions.

00:18 Now recalling what we've learned from the chapter at the beginning, we learned that the aperture of a telescope is basically the diameter of of the largest mirror or lens that allows for the most light collection, aperture letter a would be closest in definition to number three, diameter.

00:46 For resolution, we learned that resolution is how close to points of light can be to each other before they become indistinguishable.

00:57 It's assumed that what i've just drawn is a view through a high resolution telescope of two stars.

01:03 We can determine them as two separate objects because of the telescope's high resolution.

01:09 So the closest definition to resolution would be the ability to distinguish close objects, which is number four.

01:22 Now focal length, what focal length is, is the distance between the main lens or mirror in your telescope to the eyepiece.

01:40 So that's our telescope.

01:43 Here's the lens at the front of it.

01:45 The separation between that lens and the eye piece would be the focal length.

01:54 Now, the eyepiece is also referred to as the focal plane.

02:00 So the focal length is closest in match to number two right here...
