A 30.0 Ωresistor is connected in parallel to a 15.0 Ωresistor. These are joined in series to a 5

a. The schematic diagram for this circuit would look like this:u000Au000Au0060u0060u0060u000A _______ _______ ______

A 30.0 Ωresistor is connected in parallel to a 15.0...

$\mathrm{A} 30.0 \Omega$ resistor is connected in parallel to a $15.0 \Omega$ resistor. These are joined in series to a $5.00 \Omega$ resistor and a source with a potential difference of $30.0 \mathrm{V}$ a. Draw a schematic diagram for this circuit. b. Calculate the equivalent resistance c. Calculate the current in each resistor d. Calculate the potential difference across each resistor.

$\mathrm{A} 30.0 \Omega$ resistor is connected in parallel to a $15.0 \Omega$ resistor. These are joined in series to a $5.00 \Omega$ resistor and a source with a potential difference of $30.0 \mathrm{V}$
a. Draw a schematic diagram for this circuit.

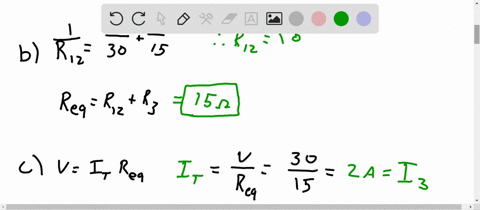

b. Calculate the equivalent resistance
c. Calculate the current in each resistor
d. Calculate the potential difference across each resistor.

Key Concepts

Series Circuits

Series circuits are configurations in which circuit elements are connected one after another along a single path. In these circuits, the same current flows through each component consecutively, and the total voltage provided by the source is divided among the individual resistors according to their resistance values. This concept is critical for understanding how voltage drops are determined in a circuit where one element follows another.

Parallel Circuits

Parallel circuits are configurations where two or more circuit elements are connected to the same two nodes, creating multiple paths for current to flow. In these circuits, all elements experience the same voltage, and the total current from the source is divided among the parallel branches inversely proportional to their resistance. Recognizing the common voltage across all branches is essential for analyzing complex circuits with components in parallel.

Equivalent Resistance

Equivalent resistance is the single resistance that can replace a group of resistors in a circuit, resulting in the same overall current and voltage behavior as the original network. For series circuits, the equivalent resistance is the sum of the individual resistances, while for parallel circuits, it is determined by the reciprocal of the sum of the reciprocals of the individual resistances. This calculation simplifies the analysis of circuits by reducing multiple resistors to an equivalent single resistor.

Ohm's Law

Ohm's Law is a foundational principle in electrical engineering that relates voltage (V), current (I), and resistance (R) through the equation V = IR. This law is used to calculate one of the three quantities when the other two are known. It is a critical tool for analyzing both simple and complex circuits and is fundamental in determining current flows and voltage drops across circuit elements.

Current Division

The current division rule applies to parallel circuits and quantifies how the total current entering a node splits among the parallel branches. According to this rule, the current through each branch is inversely proportional to the resistance of that branch, meaning lower resistance paths carry a larger portion of the total current compared to higher resistance paths.

Voltage Division

The voltage division rule is used in series circuits to determine the voltage drop across individual resistors. This rule states that the voltage across a resistor in a series circuit is a fraction of the total voltage, proportional to its resistance relative to the total series resistance. It is essential for analyzing how the supplied voltage is apportioned among various components in a series network.
