Maurizio is standing in a rectangular room with two adjacent walls and the ceiling all covered b

Maurizio is standing in a rectangular room with two adjacent...

Key Concepts

Plane Mirror Reflection

This concept refers to how plane mirrors form images by reflecting light rays such that the angle of incidence equals the angle of reflection. In these mirrors, the images are virtual, maintaining the same size as the object, but appear laterally inverted. This is a fundamental principle in geometric optics, dictating how images are formed in flat, reflective surfaces.

Virtual Image Formation

Virtual image formation is the process by which an observer perceives an image that appears to be located behind the mirror, even though no actual light rays converge at that point. In mirror systems, the images created are virtual because the reflected rays only appear to come from a location where none of them actually converge, making the image an optical illusion of sorts.

Multiple Reflections in Mirror Systems

When more than one mirror is present, light can undergo multiple reflections, leading to the formation of several images. In systems with two or more mirrors, reflections can occur sequentially such that images are produced not only from a single mirror but also from light that reflects from one mirror then another. This principle is critical when analyzing environments where mutual reflections can create a complex network of images.

Symmetry and Mirror Arrangement Geometry

The geometry of the mirror arrangement, including the angles between the mirrors, plays a crucial role in determining the number and position of the images formed. Symmetrical setups and specific angular relationships, like perpendicular junctions, often lead to predictable and sometimes multiplicative numbers of images. Understanding this symmetry helps in analyzing and deducing the number of images produced in a mirror system.

Transcript

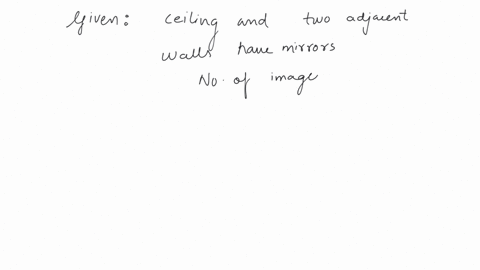

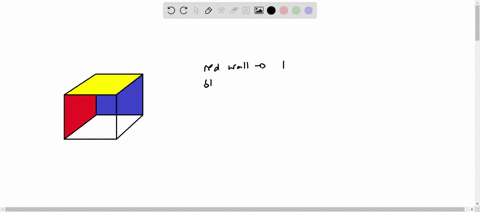

00:01 You told him this problem that you have a person staying in a room where two adjacent walls, which i've drawn here, one red, one black, are mirrored.

00:08 And then the ceiling above the person is also mirrored.

00:11 I'm looking at this from the top view.

00:12 So we're looking through that mirror above his head down to the head of the person himself.

00:16 You're asked to find how many images of this person appear in this problem.

00:23 So knowing a law of reflection on how images appear, there's going to be one image through the red mirror that i've drawn of a person back here.

00:30 There's going to be an image of the same person through the black mirror here.

00:36 And then, of course, we can't see the mirror above him, but i'll do that in green.

00:40 There's going to be an image above this person that's in that ceiling mirror.

00:45 So right now we've got three images.

00:47 Now, those images can reflect through images of mirrors.

00:51 So in other words, in the red mirror, there'll be an image of the black mirror extending farther back into that space.

00:58 And so there's going to be another.

01:01 Image of this, the red image that i have here drawn is going to be through this mirror behind here.

01:08 And there'll be another image created there in the image of the mirror itself.

01:13 The same thing will happen with the red mirror...
