Methane is compressed adiabatically by a steady-flow...

Methane is compressed adiabatically by a steady-flow compressor from $0.8 \mathrm{MPa}$ and $-10^{\circ} \mathrm{C}$ to $6 \mathrm{MPa}$ and $175^{\circ} \mathrm{C}$ at a rate of $0.33 \mathrm{kg} / \mathrm{s}$. Using the generalized charts, determine the required power input to the compressor.

Key Concepts

Mass Flow Rate

Mass flow rate, defined as the amount of mass passing through a given section per unit time, is a fundamental parameter in analyzing steady-flow systems. It directly affects the total energy and work interactions in processes such as compression, making it indispensable for calculating the overall power input needed in devices like compressors.

Generalized Thermodynamic Charts

Generalized thermodynamic charts are graphical tools that represent the relationships among various state properties of fluids under different conditions. They are particularly useful for visualizing and analyzing processes such as adiabatic compression, where properties like temperature, pressure, and specific enthalpy change. These charts aid in determining critical parameters like work done per unit mass, especially in cases where analytical equations may be complex or intractable.

Compressor Work and Power Input

In a compressor, the primary goal is to increase the pressure of a working fluid, which requires work input. The work done on the fluid can be determined by tracking the enthalpy change experienced by the fluid as it is compressed. The power input required is then found by multiplying the work per unit mass by the mass flow rate through the device.

Steady-Flow Energy Equation

The steady-flow energy equation is a formulation of the first law of thermodynamics adapted for open systems where mass flows in and out continuously. It accounts for changes in enthalpy, kinetic and potential energy, and work interactions. This equation provides the basis for analyzing the energy transformations occurring within flow devices such as compressors.

Adiabatic Process

An adiabatic process is one in which no heat is exchanged with the surroundings. In such processes, any change in the internal energy of the system is solely due to work interactions. This concept is crucial in many thermodynamic applications, as it helps isolate the mechanical work effects during processes like compression and expansion in devices including compressors and turbines.

Transcript

00:01 For this problem on the topic of thermodynamic property relations, we are told that methane is compressed idiobatically by a compressor in a steady flow process.

00:13 We want to use the generalized charts to determine the required power input to the compressor, if we know the mass flow rate of methane.

00:23 So the first thing we would do is write the steady flow energy balance equation for the compressor as follows.

00:30 So the rate of change of energy into the system e.

00:36 Dot in minus the energy out, differentiation with respect to time, e.

00:44 Dot out is equal to the change in energy of the system, delta e system dot.

00:57 And we know that the system is a steady state.

01:01 So this rate of energy change is zero.

01:05 So simply we can see that, the rate at which energy enters the system is the same as the rate at which energy leaves the system.

01:16 E.

01:16 Dot in is equal to e.

01:17 Dot out.

01:18 The energy into the system is due to the work done by the compressor.

01:25 So the power of the compressor, wc, into the system, plus the rate at which enthalpy enters the system, m .h1, must equal to the enthalpy flow out of the system m .h .2.

01:44 So we can see here that the rate at which the compressor does work, or the power of the compressor, w .c, must equal to the mass flow rate of methane m.

01:57 Times the change in enthalpy h2 minus h1.

02:02 So there we have our energy balance equation.

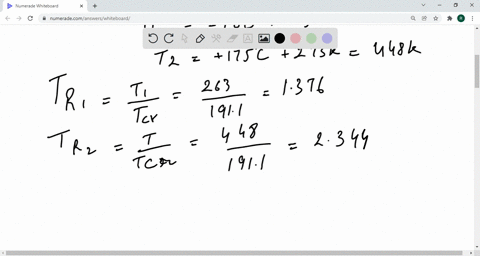

02:05 Now we need to find the enthalpy departures of methane at the specific.

02:09 States using the generalized charts...
