Modeling Data A draftsman is asked to determine the amount of material required to produce a machine part (see figure). The diameters $d$ of the part at equally spaced points $x$ are listed in the table. The measurements are listed in centimeters. $$ \begin{array}{|c|c|c|c|c|c|}\hline x & {0} & {1} & {2} & {3} & {4} & {5} \\ \hline d & {4.2} & {3.8} & {4.2} & {4.7} & {5.2} & {5.7} \\ \hline x & {6} & {7} & {8} & {9} & {10} \\ \hline d & {5.8} & {5.4} & {4.9} & {4.4} & {4.6} \\ \hline\end{array} $$ (a) Use these data with Simpson's Rule to approximate the volume of the part. (b) Use the regression capabilities of a graphing utility to find a fourth-degree polynomial through the points representing the radius of the solid. Plot the data and graph the model. (c) Use a graphing utility to approximate the definite integral yielding the volume of the part. Compare the result with the answer to part (a).

Modeling Data A draftsman is asked to determine the amount of material required to produce a machine part (see figure). The diameters $d$ of the part at equally spaced points $x$ are listed in the table. The measurements are listed in centimeters.
$$
\begin{array}{|c|c|c|c|c|c|}\hline x & {0} & {1} & {2} & {3} & {4} & {5} \\ \hline d & {4.2} & {3.8} & {4.2} & {4.7} & {5.2} & {5.7} \\ \hline x & {6} & {7} & {8} & {9} & {10} \\ \hline d & {5.8} & {5.4} & {4.9} & {4.4} & {4.6} \\ \hline\end{array}
$$
(a) Use these data with Simpson's Rule to approximate the volume of the part.

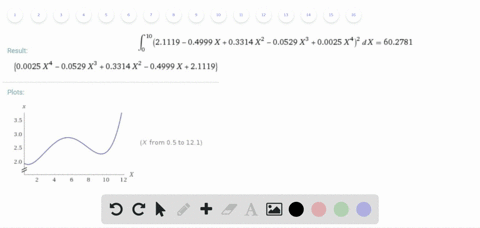

(b) Use the regression capabilities of a graphing utility to find a fourth-degree polynomial through the points representing the radius of the solid. Plot the data and graph the model.
(c) Use a graphing utility to approximate the definite integral yielding the volume of the part. Compare the result with the answer to part (a).

Key Concepts

Simpson's Rule

Simpson's Rule is a numerical integration method that approximates the definite integral of a function by fitting quadratic polynomials to segments of the curve over equally spaced subintervals. This method is especially useful when an analytical integral is difficult or impossible to obtain, and it generally provides a good balance between computational effort and accuracy for smooth functions.

Volume Calculation via Integration

Calculating the volume of a solid by integration involves summing up an infinite number of infinitesimally thin cross-sectional areas perpendicular to an axis. In many cases, such as solids with circular cross sections, the volume is determined by integrating the area formula (for a circle, ?r²) over the specified interval. This method translates geometric problems into integral calculus, allowing for precise computation of volumes.

Polynomial Regression

Polynomial regression is a statistical technique used to model the relationship between a dependent variable and one or more independent variables by fitting a polynomial equation to the observed data. In contexts where the data suggests a nonlinear trend, higher degree polynomials (such as a fourth-degree polynomial) can capture curvature in the data, providing a functional form that can be analyzed, differentiated, or integrated as needed.

Use of Graphing Utilities in Calculus

Graphing utilities, such as graphing calculators or computer software, are valuable tools in calculus for visually representing functions, fitting regression models to data, and approximating definite integrals. These tools help in verifying analytical work, investigating the behavior of functions, and providing numerical approximations when exact solutions are difficult to obtain, thus enhancing understanding and problem solving in mathematics and engineering applications.
