Niobium metal becomes a superconductor when cooled below 9 K . Its superconductivity is destroye

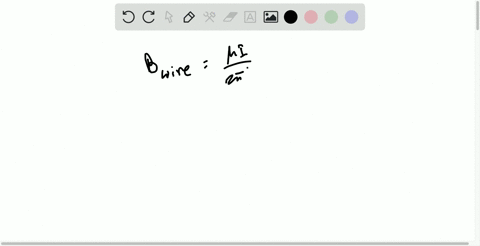

step 1 Here, we want to find the maximum current of a 2mm diameter niobium wire that can also remain su

Niobium metal becomes a superconductor when cooled below 9 K...

Niobium metal becomes a superconductor when cooled below 9 $\mathrm{K}$ . Its superconductivity is destroyed when the surface magnetic field exceeds 0.100 $\mathrm{T}$ . In the absence of any external magnetic field, determine the maximum current a 2.00 -mm-diameter niobium wire can carry and remain superconducting.

Key Concepts

Superconductivity

Superconductivity is the phenomenon where a material exhibits zero electrical resistance and expels its internal magnetic field when cooled below a certain critical temperature. This unique state allows currents to flow without energy loss, but only under conditions where both temperature and magnetic field intensity are within prescribed limits, which are intrinsic to each superconducting material.

Critical Magnetic Field

The critical magnetic field is the maximum external (or self-induced) magnetic field that a superconducting material can tolerate while in its superconducting state. Beyond this threshold, superconductivity is destroyed because the magnetic field penetrates the material and disrupts the Cooper pairs responsible for the zero-resistance state.

Magnetic Field Due to a Current-Carrying Conductor

A current-carrying conductor produces a magnetic field around it according to specific geometrical relationships. For a long, straight wire, the magnetic field at any point near the surface is directly proportional to the current and inversely proportional to the distance from the center of the wire, which is a key concept in determining how much current a superconducting wire can carry without exceeding the critical magnetic field.

Ampere's Law

Ampere's Law relates the magnetic field around a current-carrying conductor to the current passing through it. In the context of a cylindrical wire, it provides the mathematical basis for determining the magnetic field at the surface of the wire and, consequently, for calculating the maximum current that the wire can sustain while remaining superconducting.
