Nitrogen (N2) initially occupying 0.5 m^3 at 1.0 bar, 20^∘ C undergoes an internally reversible

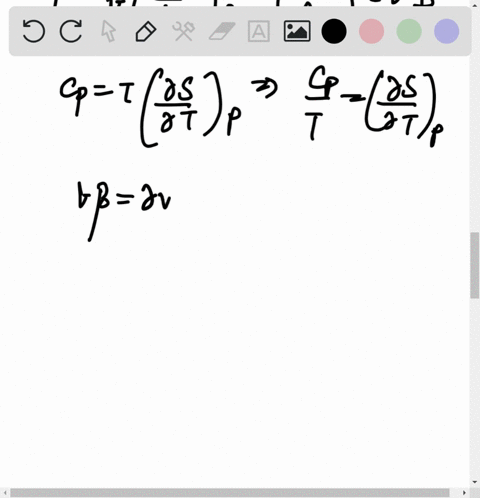

step 1 To solve this equation, obtain the partial derivative of V with respect to temperature of T of t

Nitrogen (N2) initially occupying 0.5 m^3 at 1.0 bar, 20^∘...

Nitrogen $\left(\mathrm{N}_{2}\right)$ initially occupying $0.5 \mathrm{~m}^{3}$ at $1.0$ bar, $20^{\circ} \mathrm{C}$ undergoes an internally reversible compression during which $p V^{1.30}=$ constant to a final state where the temperature is $200^{\circ} \mathrm{C}$. Determine assuming the ideal gas model (a) the pressure at the final state, in bar. (b) the work and heat transfer, each in $\mathrm{kJ}$. (c) the entropy change, in $\mathrm{kJ} / \mathrm{K}$.

Nitrogen $\left(\mathrm{N}_{2}\right)$ initially occupying $0.5 \mathrm{~m}^{3}$ at $1.0$ bar, $20^{\circ} \mathrm{C}$ undergoes an internally reversible compression during which $p V^{1.30}=$ constant to a final state where the temperature is $200^{\circ} \mathrm{C}$. Determine assuming the ideal gas model
(a) the pressure at the final state, in bar.
(b) the work and heat transfer, each in $\mathrm{kJ}$.
(c) the entropy change, in $\mathrm{kJ} / \mathrm{K}$.

Key Concepts

Ideal Gas Law

The ideal gas law, represented by the equation pV = nRT, is fundamental in relating the state variables of pressure, volume, and temperature for a gas. It provides the basic framework to determine one state variable when the others are known, making it essential for analyzing gas behavior under various thermodynamic processes.

Polytropic Process

A polytropic process is a thermodynamic process that follows the relation pV^n = constant, where n is known as the polytropic exponent. This process generalizes several special cases (such as isothermal when n = 1 or adiabatic when n equals the ratio of specific heats) and is widely used to model compression and expansion in gases where heat transfer may occur in a controlled manner.

First Law of Thermodynamics

The first law of thermodynamics, stating that ?U = Q - W, serves as the principle of energy conservation in thermodynamic processes. It relates the change in the internal energy of a system to the heat added (Q) and the work done (W), providing a crucial tool for analyzing process energetics.

Work Computation in Polytropic Processes

In a polytropic process, the work done by or on the gas is typically calculated using the formula W = (p2V2 - p1V1) / (1 - n) for n ? 1. This expression is central to quantifying the energy transfer as work during expansion or compression operations involving ideal gases.

Entropy Change for Ideal Gases

Entropy change in an ideal gas encapsulates the measure of disorder and the energy dispersal within the system during a process. It can be determined using relations that account for variations in temperature and volume or pressure, particularly in internally reversible processes, thus providing insight into the irreversibility and heat transfer aspects of the process.
