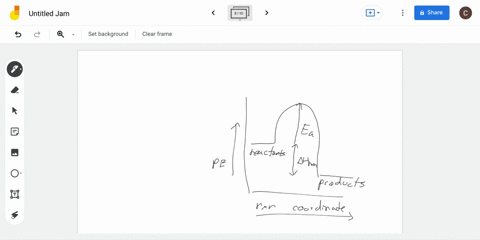

On the following graph, label the products, reactant, ΔHreaction , the energy of activation (Ea)

step 1 For this question, we have an energy diagram for a particular reaction. We show that the potenti

On the following graph, label the products, reactant,...

On the following graph, label the products, reactant, $\Delta H_{\text {reaction }}$, the energy of activation $\left(E_{\mathrm{a}}\right)$ and the transition state. Is the reaction exothermic or endothermic? On the graph, draw a path for a catalyzed reaction.

Key Concepts

Energy Profile Diagram

An energy profile diagram is a graphical representation of the energy changes during a chemical reaction. It shows the potential energies of the reactants, transition state, and products along a reaction coordinate, providing a clear visualization of the energy barrier that must be overcome for the reaction to proceed and the overall energy change between the starting and final states.

Activation Energy (Ea)

Activation energy is the minimum amount of energy required to convert reactants into products by reaching the transition state. It is depicted on the energy profile diagram as the energy difference between the reactants and the highest point (transition state) of the reaction pathway.

Transition State

The transition state represents the highest energy point along the reaction pathway on the energy profile diagram. It is a fleeting molecular arrangement that exists at the peak of the activation barrier and indicates the point at which old bonds are breaking and new bonds are forming.

Reaction Enthalpy (?H)

Reaction enthalpy (?H) measures the overall heat change during a chemical reaction. On an energy profile diagram, it is represented by the energy difference between the reactants and the products. A negative ?H indicates an exothermic reaction (releasing heat), whereas a positive ?H indicates an endothermic reaction (absorbing heat).

Exothermic vs Endothermic Reactions

Exothermic reactions release energy, resulting in products that are at a lower energy level than the reactants, while endothermic reactions absorb energy, leading to products with a higher energy level. This distinction is crucial in understanding the direction of heat flow in a reaction and is visually reflected on the energy profile diagram through the differences in energy levels between the reactants and products.

Catalysis

Catalysis refers to the process by which a catalyst speeds up a chemical reaction by providing an alternative reaction pathway with a lower activation energy. On an energy profile diagram, a catalyzed reaction is depicted with a lower energy barrier (reduced activation energy) compared to the uncatalyzed reaction, allowing the reaction to occur more readily without altering the overall reaction enthalpy (?H).
