One end of a cylindrical iron rod of length 1.00 m and of radius 1.30 cm is placed in the blacks

step 1 In this problem, change in temperature is equal to 3 to 7 degree centigrade minus 37 degrees cen

One end of a cylindrical iron rod of length 1.00 m and of...

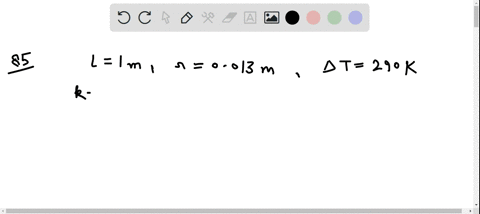

One end of a cylindrical iron rod of length $1.00 \mathrm{m}$ and of radius $1.30 \mathrm{cm}$ is placed in the blacksmith's fire and reaches a temperature of $327^{\circ} \mathrm{C}$. If the other end of the rod is being held in your hand $\left(37^{\circ} \mathrm{C}\right),$ what is the rate of heat flow along the rod? The thermal conductivity of iron varies with temperature, but an average value between the two temperatures is $67.5 \mathrm{W} /(\mathrm{m} \cdot \mathrm{K})$.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Cross-sectional Area Calculation

The cross-sectional area of a material, especially in geometries such as cylinders, is key to determining the rate of heat conduction. It is calculated using the appropriate geometric formula (for a cylinder, using A = ?r²), and directly influences the amount of heat that can pass through the material per unit time.

Fourier's Law of Thermal Conduction

Fourier's law states that the rate of heat transfer through a material is directly proportional to the negative gradient in the temperature and the area through which the heat flows. It provides a fundamental relationship used to calculate the heat flow in materials when there is a temperature difference across them.

Thermal Conductivity

Thermal conductivity is a material-specific property that quantifies a substance's ability to conduct heat. It is a critical parameter in the study of heat transfer and is used in calculations following Fourier’s law to determine how effectively heat is transferred through materials.

Temperature Gradient

The temperature gradient represents the change in temperature per unit distance within a material. It is the driving force for heat transfer under conduction, meaning that a larger temperature gradient will typically result in a higher rate of heat flow.
